FormulaFlash will release a major update expanding its Ford ECU bench support family on July 31, 2026. The latest release adds full Bench Mode reading and writing capabilities for Ford SID211 (TC1791), SID212, and SID212EVO (TC297TP) ECUs with complete real read/write and automatic checksum calculation support.
Supported ECU Models & Microcontrollers
- Ford Continental SID211
MCU: Infineon Tricore TC1791
Mode: Bench Mode
Features: Real Read & Write | Checksum Support
- Ford Continental SID212 / SID212EVO
MCU: Infineon Tricore TC297TP
Mode: Bench Mode
Features: Real Read & Write | Checksum Support
Core Technical Highlights
1.Bench Mode Connection: Read and write ECU data directly via harness wiring on bench—no ECU opening or soldering required.
2.Real Read & Write: Full access to ECU memory for accurate cloning, tuning, and data recovery.
3.Automatic Checksum Correction: Built-in hardware/software checksum recalculation ensures reliable flashing and engine start after modification.
Representative Ford Vehicle Applications
This update covers popular Ford commercial and passenger vehicles equipped with SID211, SID212, and SID212EVO ECUs across global markets:
- Ford Transit
- Ford Transit Custom
- Ford Ranger
- Ford Focus IV
- Ford Kuga III
- Ford Mondeo
Simple Operation:

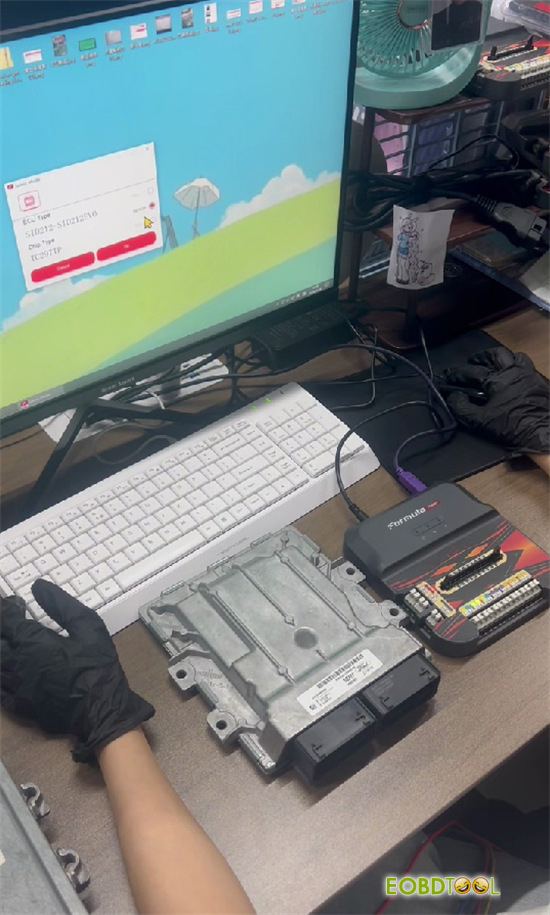

Connect FormuFlash ECU Programmer and a computer via USB cable, supply power to the device as well
Run FormulaFlash software V1.1.9.0

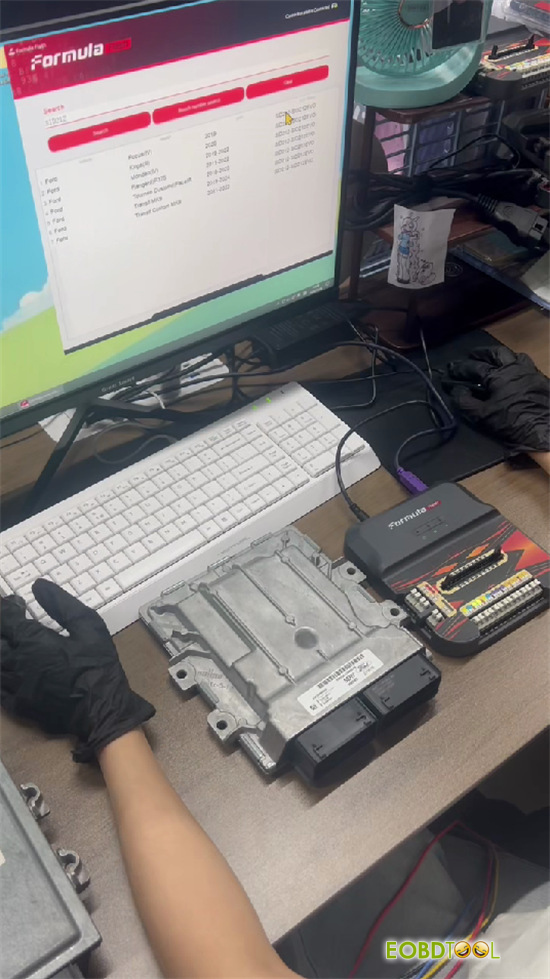

Input the new supported ECU type (e.g.sid212)
Confirm the ECU type (SID212/SID212EVO)
Select Bench mode

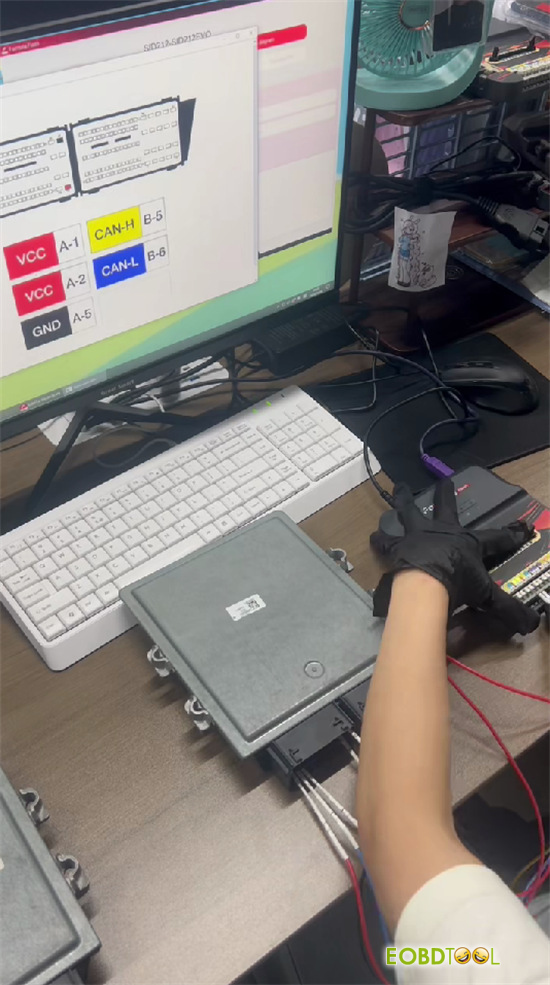

Check the wiring diagram, and connect FormulaFlash ECU TCU Programmer to ECU correctly

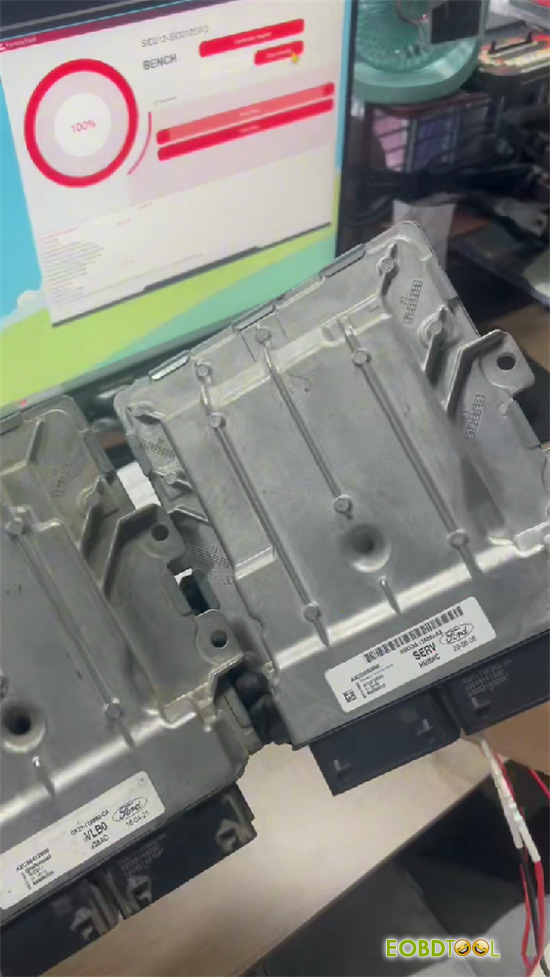

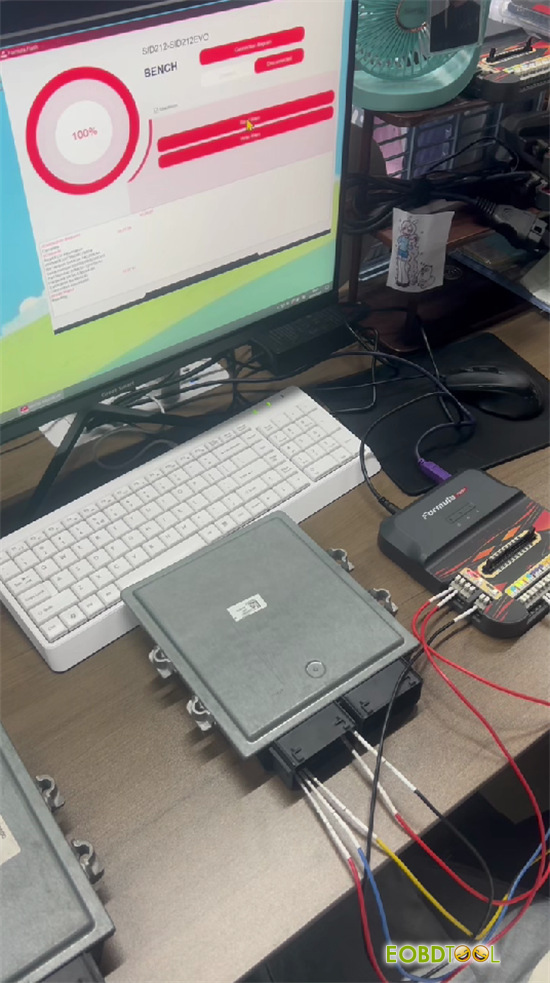

After connecting, perform read and write functions.
Summary & What’s Next
With this new release, FormulaFlash continues to expand its bench coverage for modern protected Ford ECUs. Update your FormulaFlash software to the latest version to access these newly added protocols.
