Modern FCA (Fiat Chrysler Automobiles) vehicles are equipped with a Secure Gateway (SGW) that protects critical vehicle systems from unauthorized access. To perform advanced diagnostics, programming, or module updates, you need to unlock the SGW securely. With the right tools and guidance, this process is straightforward.
In this article, we’ll walk you through how to unlock the FCA US SGW using TOPDON TopScan Pro—a powerful diagnostic solution trusted by professionals worldwide.
What You’ll Need
- A TopScan diagnostic device(TopScan Pro)
- Mobile support: Android 7.0 or above/iOS 10.0 or above
- TopGuru APP(Requires iOS 10.0 or later); TopScan APP (Requires Android 7.0 or later)
- AutoAuth account credentials
- Stable vehicle connection (via VCI or compatible interface)
- FCA vehicle software installed on your TopScan device
Step-by-Step Guide to Unlock FCA US SGW

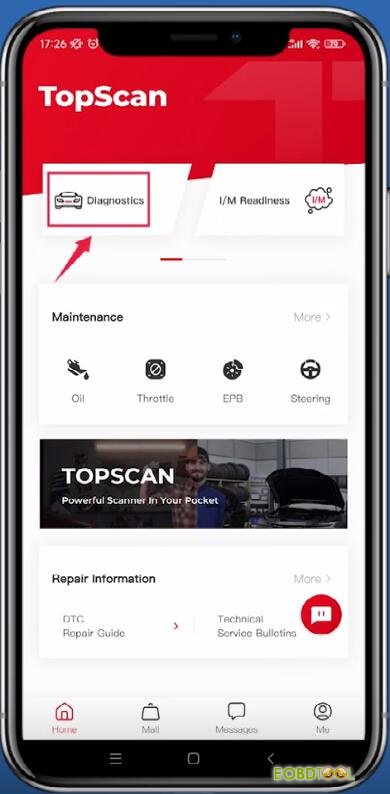

Step 1: Enter Diagnostics Mode
Launch TopScan and click the “Diagnostics” button to access the main vehicle selection menu.

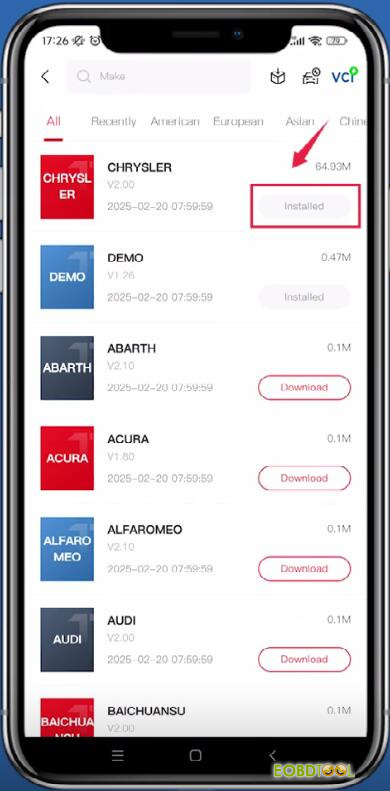

Step 2: Download FCA Vehicle Software
From the vehicle list, locate and download the FCA (Fiat Chrysler Automobiles) software package.
✅ Note: If the software is already installed, you can skip this step.

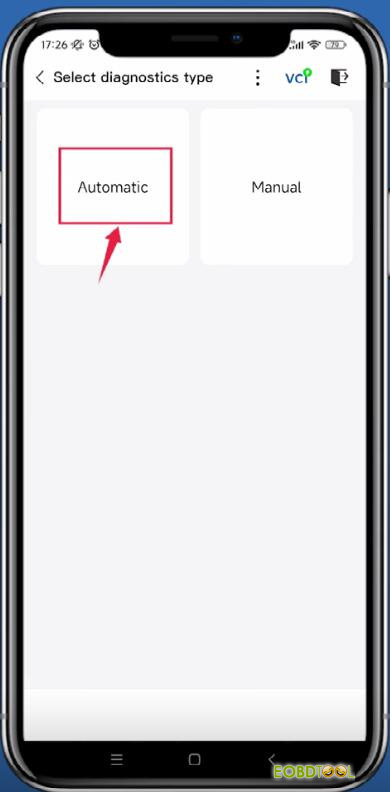

Step 3: Select Vehicle Entry Mode
Open the FCA software and choose between “Automatic” or “Manual” vehicle identification.
We recommend using “Automatic” to minimize errors and speed up the process.

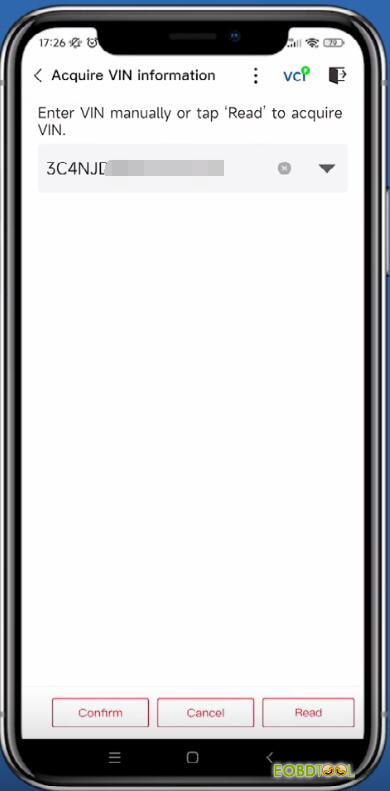

Step 4: Read the VIN Automatically
Allow TopScan to automatically read the vehicle’s VIN. This ensures accurate vehicle detection and prevents mismatches.

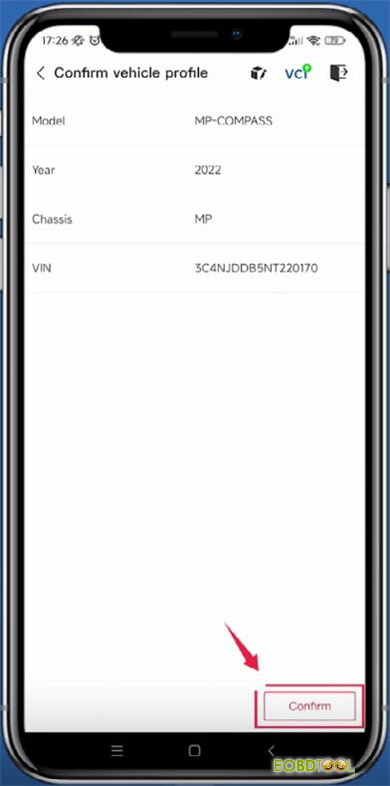

Step 5: Confirm Vehicle Information
Review the vehicle details displayed on the screen. Confirm that the model, year, and VIN match the car you’re working on.

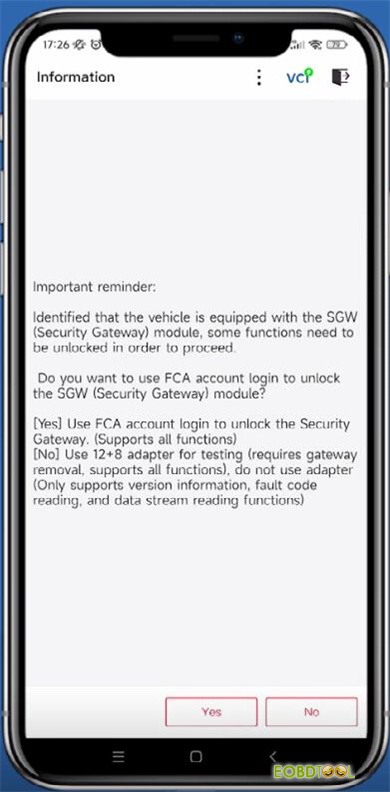

Step 6: SGW Detection & AutoAuth Prompt
If the vehicle is equipped with an FCA SGW, a prompt will appear asking whether you want to unlock it.
Select “Yes” to proceed with AutoAuth authentication.
Selecting “No” will require an additional FCA 12+8 cable to bypass the gateway—a more complex and hardware-dependent method.

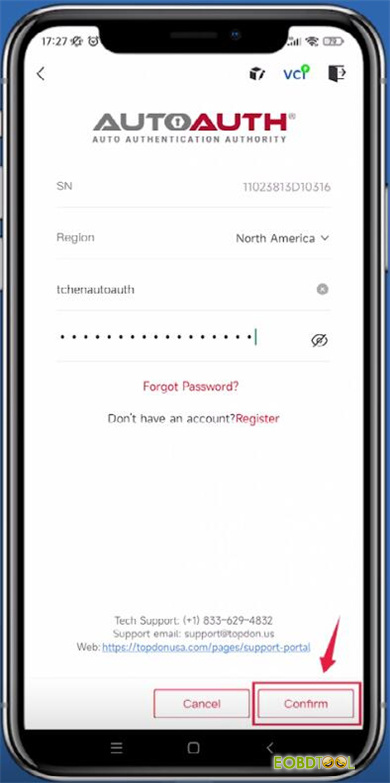

Step 7: Enter AutoAuth Credentials
After selecting “Yes”, enter your AutoAuth account username and password, then click “Confirm”. This step authorizes TopScan to communicate securely with the SGW.

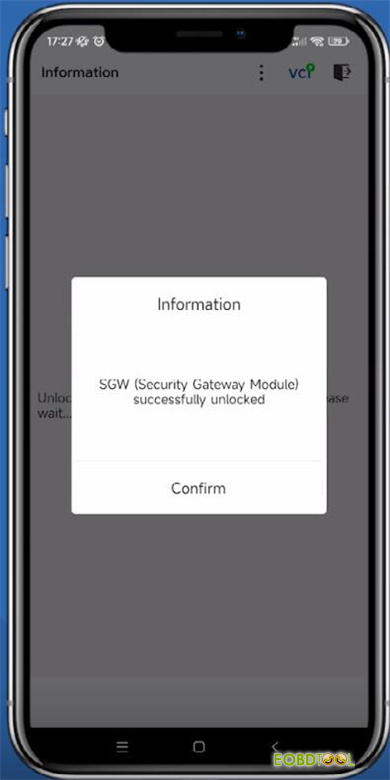

Step 8: Begin Diagnostics
Once the FCA US SGW is successfully unlocked, you’ll receive a confirmation message. You can now perform full-system diagnostics, coding, adaptations, and more on the FCA vehicle.
Troubleshooting Tips
- If the SGW unlock fails, check your AutoAuth subscription and internet connection.
- Ensure your TopScan device is updated to the latest software version.
- For older FCA models without SGW, you can proceed directly to diagnostics.
