Fgtech 4 clone: firmware 0475 or firmware 0386?

This is for those looking for a decent cloned Fgtech 4, either EU version or China version.

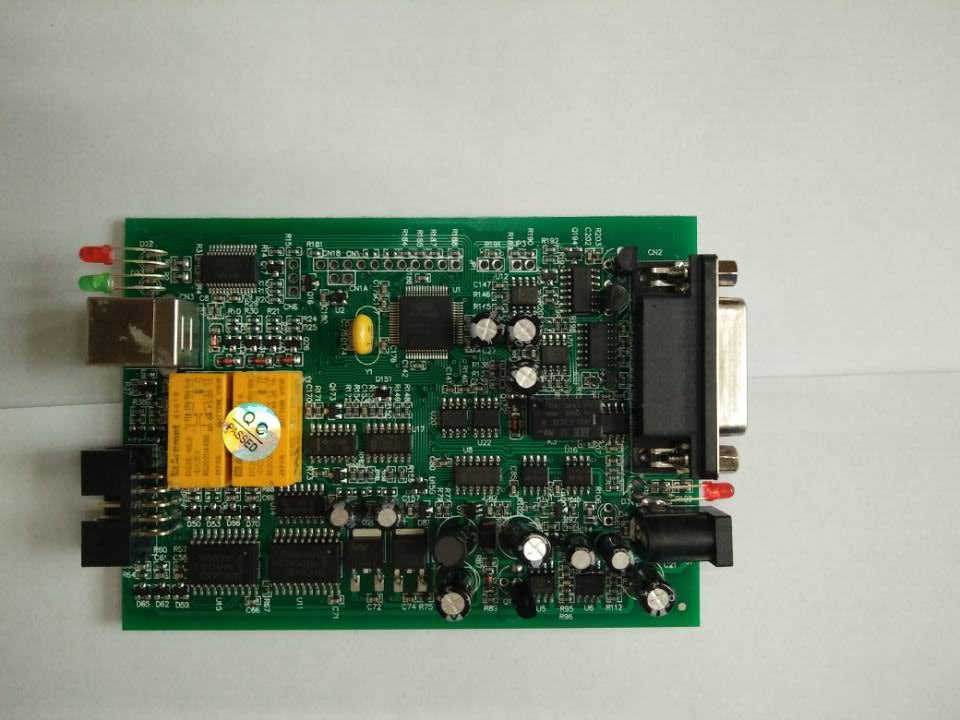

clone Fgtech 4 EU version: firmware 0475

source: https://www.eobdtool.co.uk/wholesale/fgtech-0475-galletto-4-master-eu-version.html

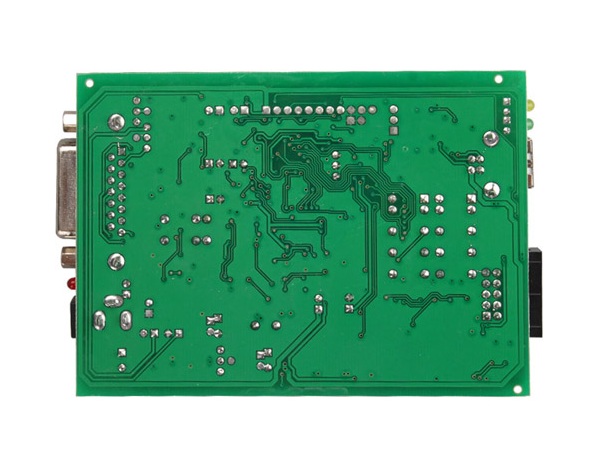

clone Fgtech 4 Chinese version: firmware 0386

There are two versions of China clone.

 Item No. SE61-G is the other version they sell, it comes in a brown box, has a power adapter for bench work, and has a green led, next to the power connector, and a red and yellow leds on the other side. This version is a little more expensive… Just a couple of euros… Maybe it's because it has the power adapter also…

https://www.eobdtool.co.uk/wholesale/fgtech-galletto-4-master-ecu-programmer.html
 Item No. SE61-GB is the one, that has red led next to the power connector, and a green and yellow leds, on the other side, and comes without power adapter and comes in a white box.
https://www.eobdtool.co.uk/wholesale/fgtech-4-galletto-master-ecu-programmer.html

So, which version should you buy? EU version or China version?

Fgtech 4 EU version comes with firmware 0475, while China version comes with firmware 0386

The EU version is updated a lot on the inner board so it has a better vehicle/ECU/protocal coverage.

  1. 1. Original components used:

The board comes with original FR232 USB bridge and relays.

  1. 2. Old components fixed: more stable:

FGTECH 4 FW 0475 EU version fixed all unstable problems and errors which FW 0386 had.

The engineers have corrected MCU, EEPROM , Relay, Resistance, Led, Solder, Pin, Capacitor

3. New components added: Tricore supported

FGTECH 4 FW 0475 EU version adds new components, best usb bridge and relays.

Work well with OBD / BDM / Boot / Tricore,

But FW 0386 is not good at Tricore.

New ECUs and protocols:

11/12
OBD driver SSang-yong Del-phy DCM3.7 Read/Write, Checksum

11/12
OBD driver for Fer-rari 458 Italia MED9.6 Ecu Master and ECU Slave Read/Write, Checksum

10/12
OBD driver for Fi-at/Al-fa/Lan-cia Twi-nair/Mult-iair 8GMF and 8GSF Read/Write, Checksum

10/12
OBD driver for Ma-zda 5, Ma-zda 6 2.0 Diesel ECU RF8x Read/Write, Checksum

10/12
OBD driver for Ma-zda 5, Ma-zda 6 2.0 Diesel ECU RF7x Read/Write, Checksum

09/12
OBD driver for Sim-os 10.xx VA-G 1.2 TSI Read/Write, Checksum

09/12
OBD driver for CRD 3.xx Merc-edes 2200 CDI Read/Write, Checksum

09/12
Simos PCR2.1 VA-G 1.6 TDI Unlock Boot Tool – Read/Write EEPROM

09/12
OBD driver Sim-os PCR2.1 VA-G 1.6 TDI Read/Write, Checksum

08/12
RSA recognition Peu-geot Bip-per

08/12
RSA recognition Citr-oen Ne-mo

08/12
OBD driver Driver for writing Bo-sch EDC16C34/5 Peu-geot Bip-per Read/Write, Checksum

08/12
OBD drive Driver for writing Bo-sch EDC16C34/5 Citr-oen Ne-mo  Read/Write, Checksum

07/12
OBD driver Del-phi DCM3.5 for Ta-ta Sa-fari  Read/Write, Checksum

07/12
Checksum recognition for DCM3.7 Ssan-gyong

07/12
Checksum recognition for DCM3.7 Op-el and Sa-ab

07/12
Checksum recognition for DCM3.7 Ki-a  and Hyu-ndai

07/12
Boot Visteon ST10F275 RX-TX Mode

07/12
Boot ME7.9.10 ST10F275 RX-TX Mode

06/12
Checksum recognition for Denso Sub-aru Tri-beca

06/12
Boot Mitsu-bishi MH7203 Hyu-ndai

06/12
Checksum recognition for Denso Nis-san L200

06/12
Checksum recognition for Denso Nis-san X-Trail

06/12
OBD driver Op-el Simtec75 CAN  Read/Write, Checksum

05/12
OBD driver  Pors-che SDI3 CAN  Read/Write, Checksum

05/12
Cor-vette Utility CAN for change VIN, Code Align, Erase Errors

05/12
Corette Utility VPN for change VIN, Code Align, Erase Errors

05/12
OBD driver Reault SID305 CAN  Read/Write, Checksum

05/12
OBD driver Masrati ME9 CAN  Read/Write, Checksum

04/12
Tool Boot Hitaci Phase 3

04/12
Tool Boot Hitaci Phase 2

04/12
OBD driver Fi-at ME17.31 CAN  Read/Write, Checksum

04/12
Boot Mits-ubishi for L200 MH8102F

03/12
Boot Mitsu-bishi for Lan-cer EVO MH7202

03/12
Fi-at MJ8DF CAN Serial Injectors

03/12
Fi-at MJ8DF CAN Serial Injectors

02/12
OBD driver Fi-at MJ8DF CAN Read/Write, Checksum

02/12
OBD driver Fi-at MJ8DF K-line Read/Write, Checksum

02/12
OBD driver Merc-edes Del-phi CRD2.xx CAN Read/Write, Checksum

01/12
OBD driver Fo-rd Del-phi DCM3.5 CAN Read/Write, Checksum

01/12
OBD driver PS-A Delp-hi DCM3.5 CAN  Read/Write, Checksum

01/12
OBD driver VA-G Sim-os 3xx Boot mode 29F400 C167 Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 9.1 Boot mode 29F400 C167 Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 7.1 Boot mode 29F400 C167 Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 33 K-line serial Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 32 K-line serial Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 3PG K-line serial Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 3PE K-line serial Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 3PD K-line serial Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 3PC K-line serial Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 3PA K-line serial Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 9.1 K-line Read/Write, Checksum

11/11
JTAG MPC55xx

10/11
New password Triore Tprot V08-10

10/11
OBD driver Ren-ault Val-eo V40, Read/Write, Checksum

10/11
AUD Renesas

10/11
Boot Renesas

NEW JTAG – BDM – MOT – FREESCALE:

 1.Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 – Mair 8GMF

2.New Delphy DCM3.5xx DCM3.7xx TRW

3.MOT Free scale MPC 555/556/561/562/563/564/565

4.MOT MC 68332 – MC YQQCU – MC 68377 Trionic 5/7/8 For GM- For OPEL- For SAAB

5.MOT MC 68376 Campi 01 for Lamborghini – Lotus

6.MOT MC 68336 MEMS D5

7.MOT ZC 439615 – ZC 439507 IAW For FIAT – VAG

8.New Line OBD protocols VPM for GM Hummer-Corvette-Munstang-Blazer-Cadilac

9.New Line OBD protocols Tx-Rx – for Subaru – For Mitsubischi – For Hitachi – For Denso ecu

10.All EDC17 MED17 is good always modify with Boot Mode

Conclusion:

If you look for stability or need a decent tool for some new ECU/vehicle listed above,

it's good to have a new EU version Fgtech 4 firmware 0475

But you have a budget limit and confirm the ECU/vehicle can be worked on with the old China version Fgtech 4 firmware 0386, the old version is your way to go. it will help you save 20 usd around!
