How to install Xhorse VVDI Prog V2.1.0 software

Xhorse VVDI Prog ECU programmer 2.1.0 is developed to program multi vehicle EEPROM, MCU and ECUs. VVDI-Prog adds  pin code calculation functions for multi-brand vehicle models as well. Here is the instruction on installing V2.1.0 VVDIPROG software step-by-step.
Free download VVDIProg 2.1.0 software driver
Software version: V2.1.0
Language: English/Chinese
Operating system: Windows XP
How to install VVDIProg 2.1.0 software?
1) Install VVDIPROG software driver
2) Run VVDI Prog software and start programming
1) Install VVDIProg 2.1.0 driver
Insert DVD to computer
Open My Computer
Open VVDIProg2.1 (E:) DVD
Copy and paste VVDIProg folder to desktop
Connect the VVDI prog programmer with computer via USB port
Wait the system to found hardware wizard
Select “Install from a list of specific location (Advanced)”, click “Next


Include this location in the search C:/Documents and
Settings/Adminnistrator/Desktop/VVDIProg/driver/ft232, click “OK” and “Next


Click “Finish
Install driver follow the previous instructions again
Select “Install from a list of specific location (Advanced)”, click “Next
Click “Next
Click “Finish”

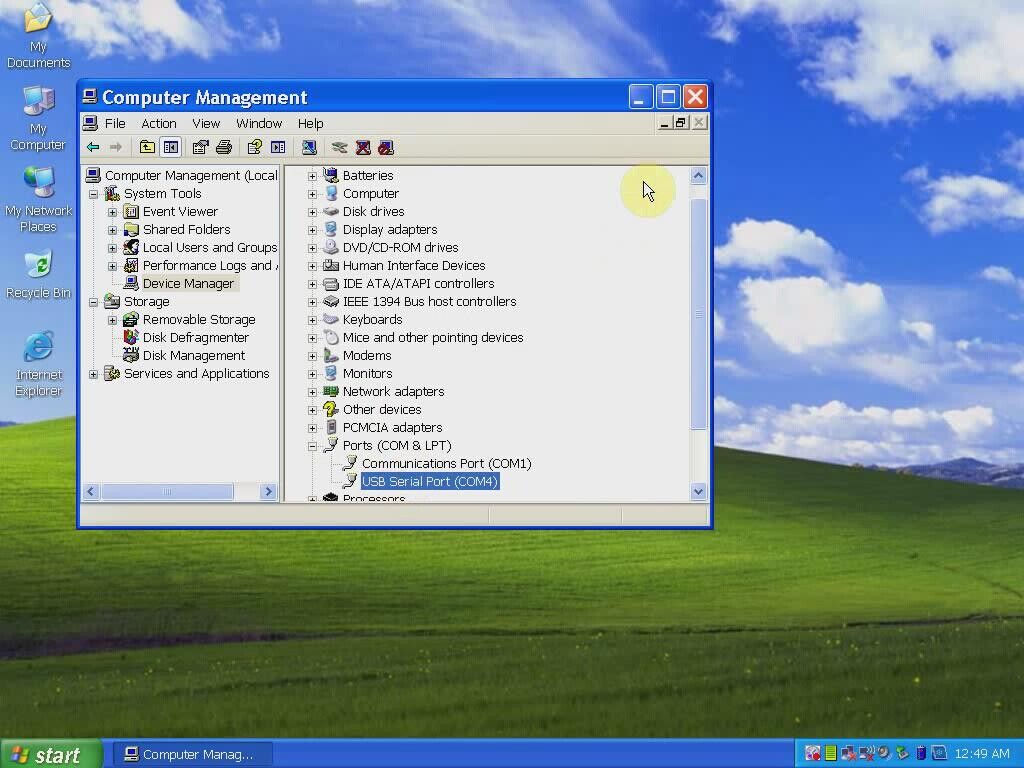

Open My Computer>>Manager>>Device Manager>>Ports>>USB Serial Port (COM4) to check well communication is built


2) Run VVDIPROG V2.1.0 software
Open VVDIProg folder on desktop


Click “Language” tab to exchange language between English and Chinese


Select ECU type and chip type from the list
The VVDIProg software will prompt which cable/connector is going to be used


Click “Connection diagram” button
Click “New” tab
Click “Read
The software will display EEPROM data


Click “Save”, save the bin file to desktop and name it 93c66, click Save


Create a new window
Select other ECU type and chip type
The system will also prompt which cable is about to use and the detail diagram


Select other functions and follow the system prompts.
