KEYDIY KD-X4 5-in-1 key programmer and KD-MAX now support NCF29AX series chip type synchronization. C29AX71 Synchronization-specialized Key is required. This lets you read original key data to copy or add smart keys.
Key Features:
- Global Compatibility – Supports over 75% of mainstream car models worldwide, allowing new keys to be added without requiring on‑vehicle matching.
- Precision Adaptation – Seamlessly adapts toNCF29AX series (NCF29A1, NCF29A4, NCF29A2, NCF2953, NCF29A3, NCF2954) original car keys with perfect compatibility.
- Seamless Keyless Support – Fully compatible with advanced keyless entry and start systems.
- One‑Key Synchronization – Optimize your workflow with efficient, one‑touch key issuance. Eliminates the need for multiple bulky devices.
- Simplified Process – Bypasses complex programming sequences and password verification. No specialized wiring harnesses are required.
- User‑Friendly for All – Significantly enhances locksmith productivity while remaining intuitive enough for beginners to master car key synchronization
How to Synchronize NCF29AX Series Key?

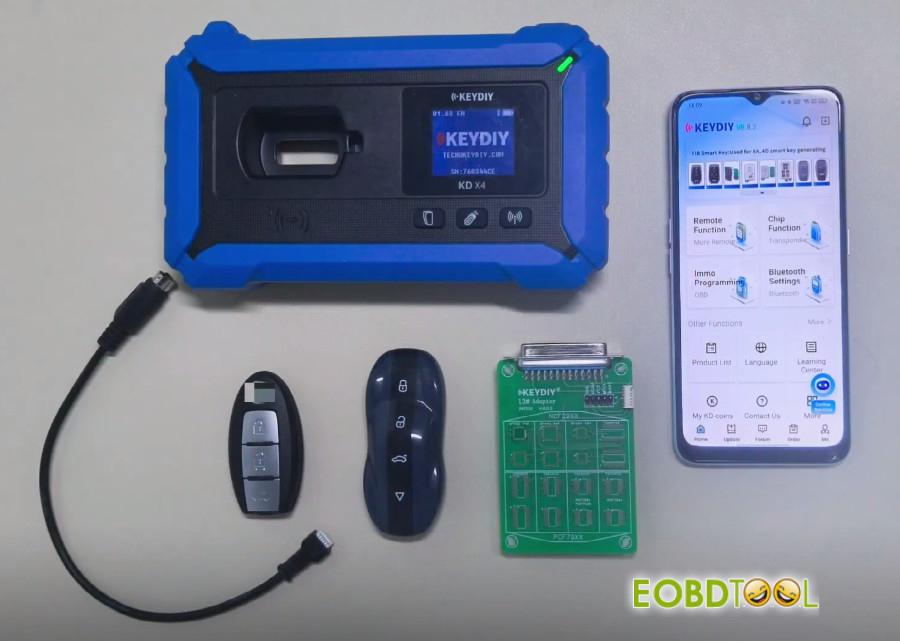

What you’ll need:
- KEYDIY KD-MAX or KD-X4
- KD ZB71 smart remote (must write data into it!)
- KD #13 NCF29xx interface board
- Original key
Quick notes before you start:
- Update your KD App to the latest version first
- This isn’t just a simple read‑and‑ Some keys need chip removal and soldering onto the KD board.
- No need to generate a remote program before reading key data.
Step‑by‑step guide:
Step 1: Remove chip from original car key
Step 2: Attach chip to 13# adapter
Step 3: Read chip data
Step 4: Write data to KD ZB71 remote
In detail…
Step 1: Remove chip from original car key

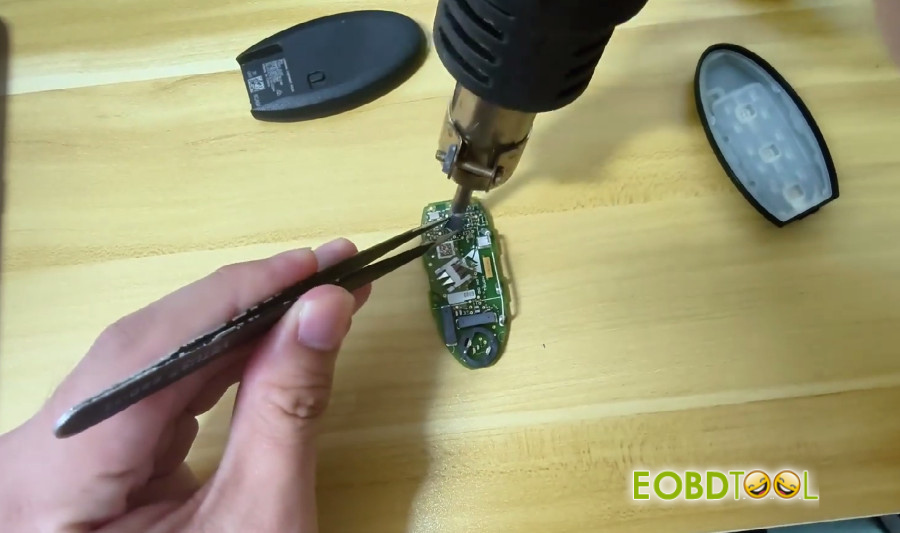

Take apart the original smart key and remove the NCF29Ax chip.
Step 2: Attach chip to 13# adapter

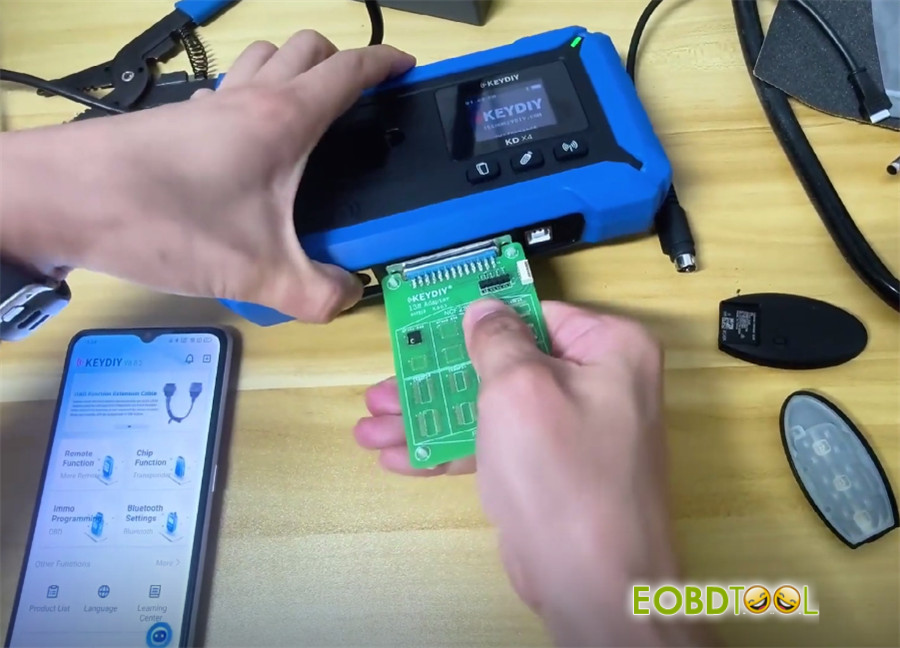

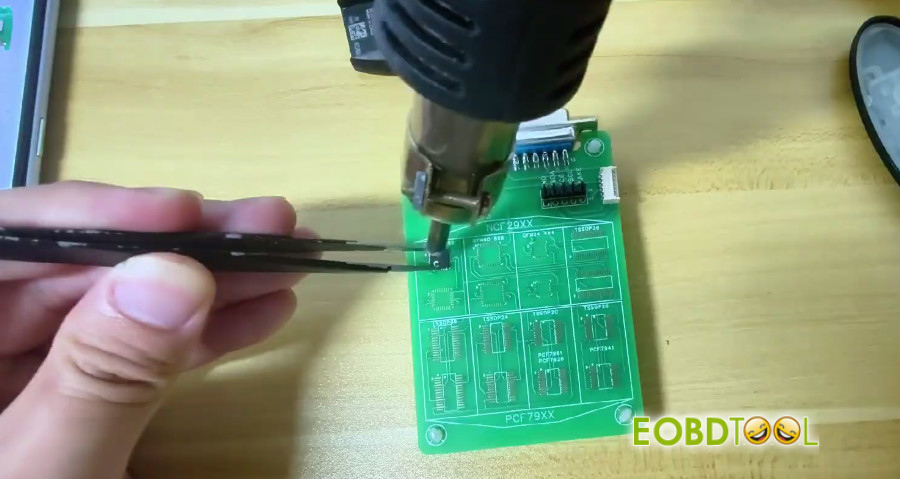

Solder the chip onto KD #13 adapter, then connect the adapter to your KEYDIY KD-X4 or KD-MAX key programmer.

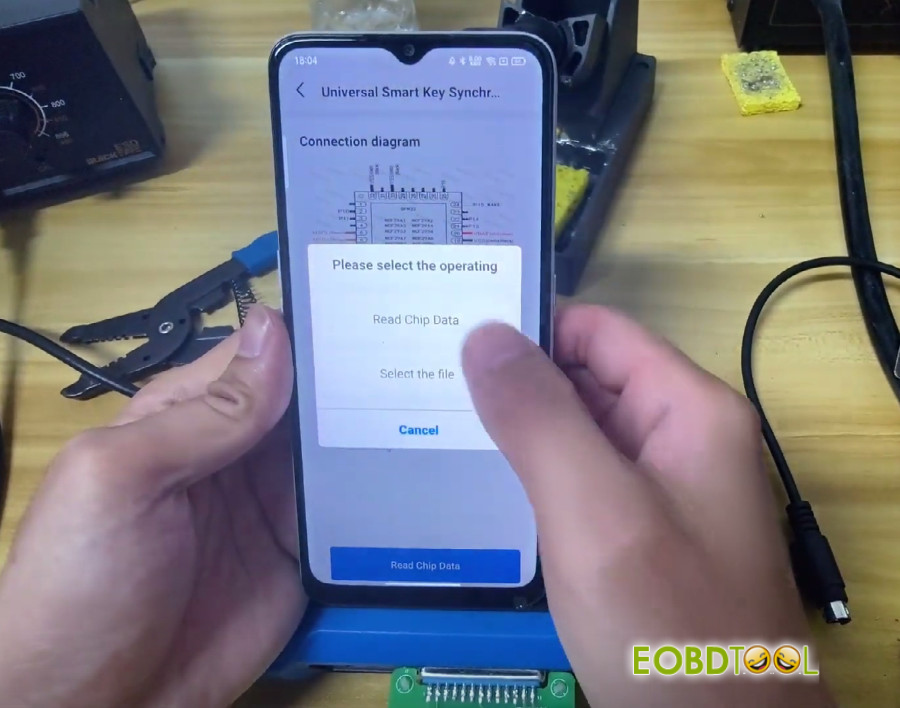

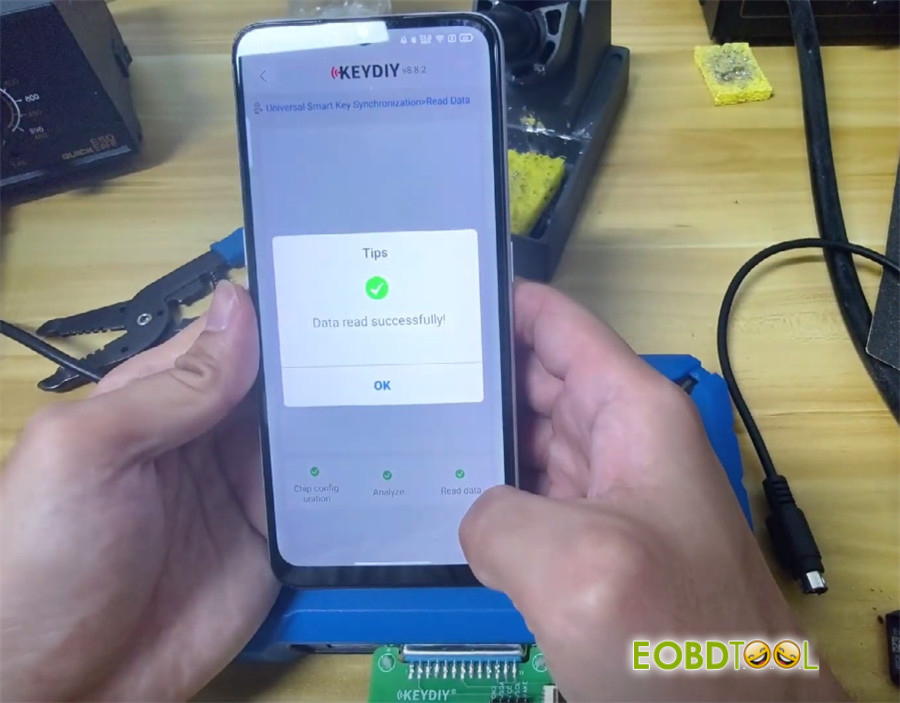

Step 3: Read chip data

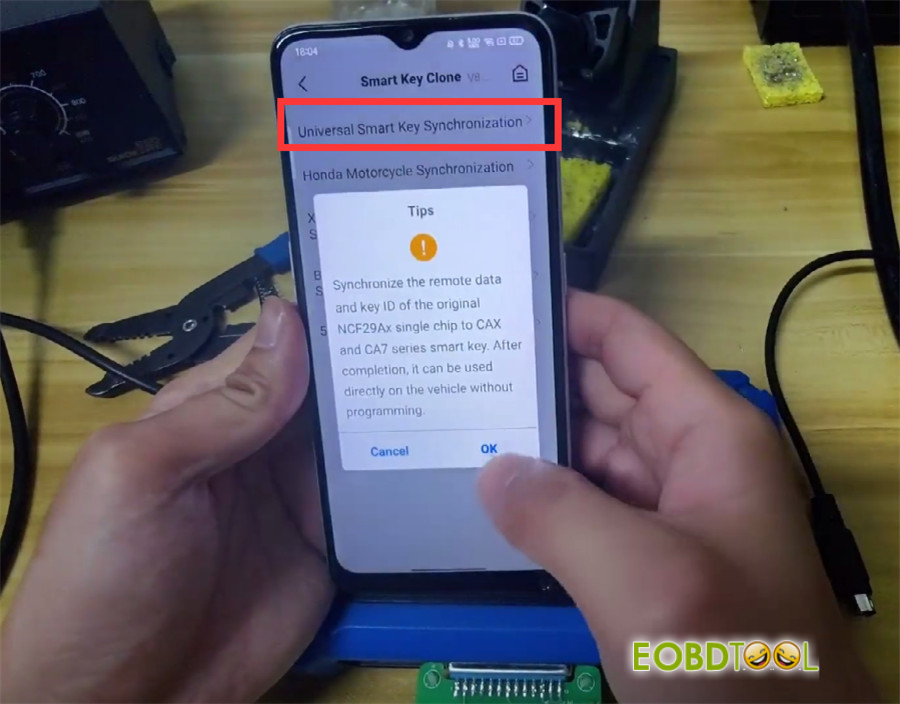

Go to: Remote Function → Smart Key Clone → Universal Smart Key Synchronization
This syncs the original chip’s remote data and key ID to KD ZBX/ZB7 series smart keys.
After that, the key works on the vehicle – no programming needed!

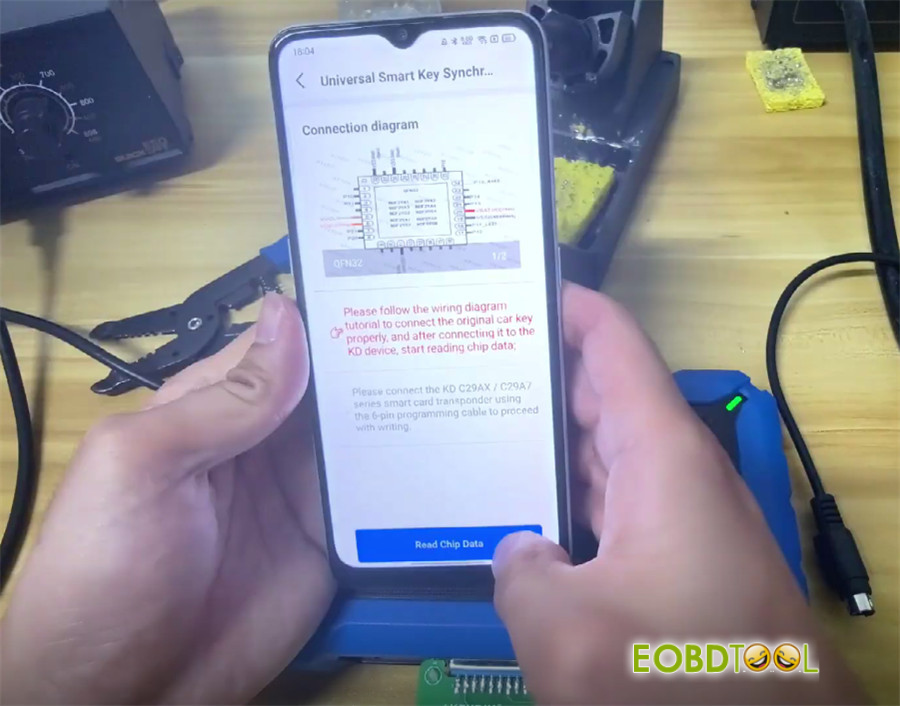

Follow the wiring diagram to solder wires directly to the key board, read and save the data, then remove the adapter and solder the chip back to the original key.
Step 4: Write data to KD ZB71 remote

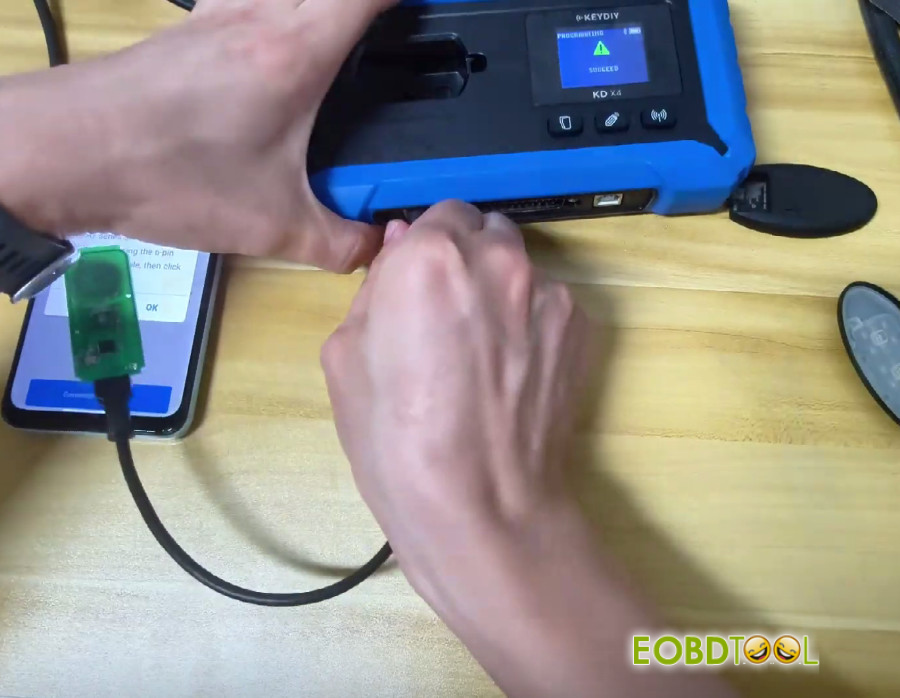

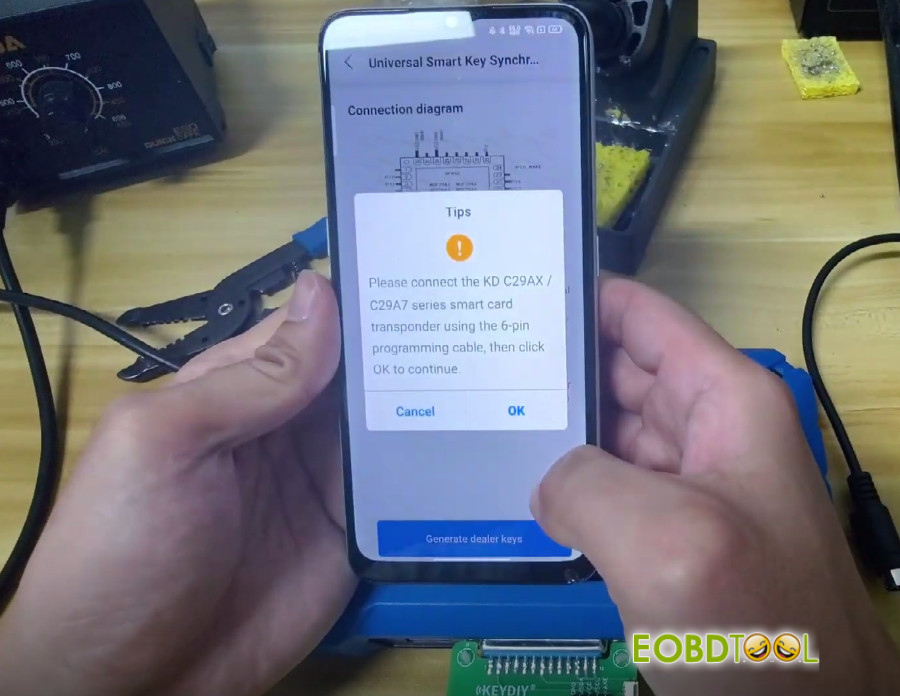

Use the 6‑pin programming cable to connect KD 29AX/29A7 smart card to your KD-X4 key programmer.

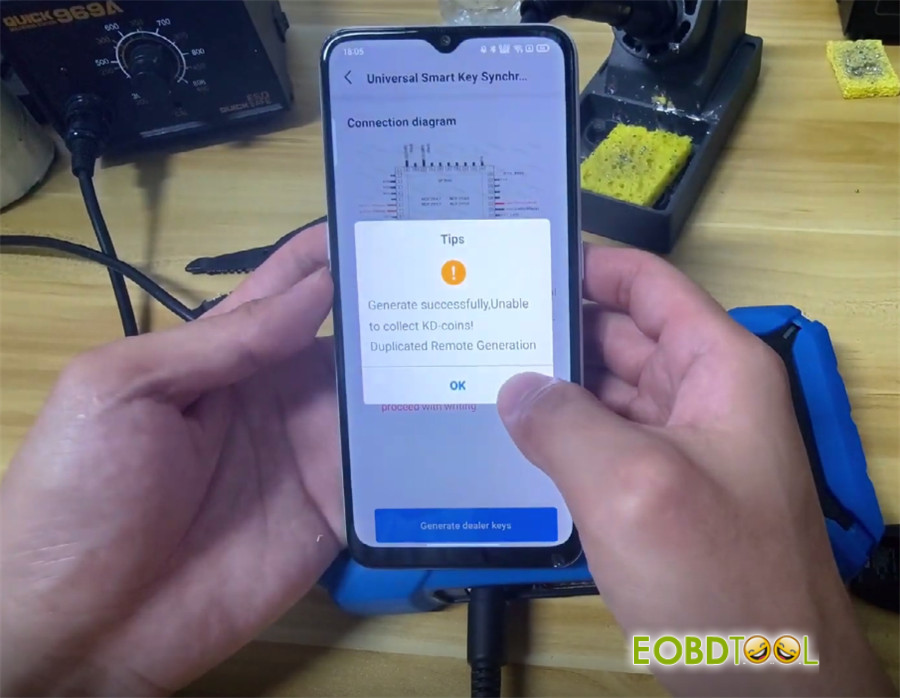

Hit Generate dealer key – success!
Then snap the key shell onto the KD ZB remote.
Best part:
No need to program the key in the car after writing the KD remote.
Just test both the KD key and the original key to make sure everything works.
