KTag Tricore BOOT Simos PCR2.1

How to read/write PCR2.1 with Ktag:

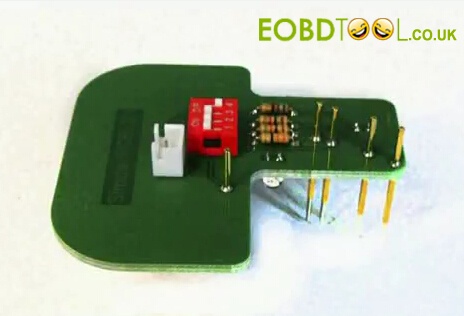

Tricore BOOT Simos PCR2.1 adapter

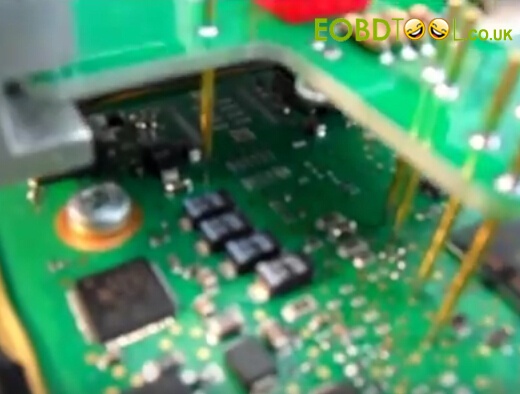

Move the retainer carefully, towards the ECU and ensure that all pins are in their designed position

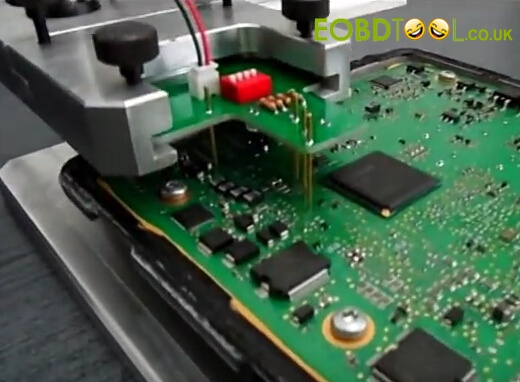

To read EEPROM and unlock ECI, switch the adapter in BOOT mode

Turn ECU power off before switching the mode

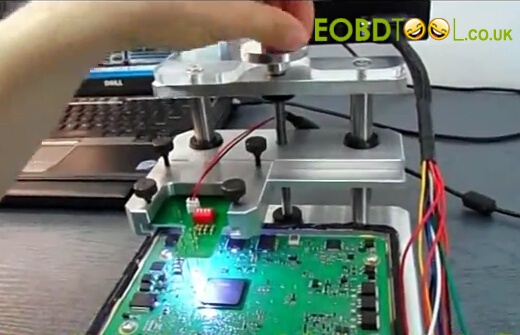

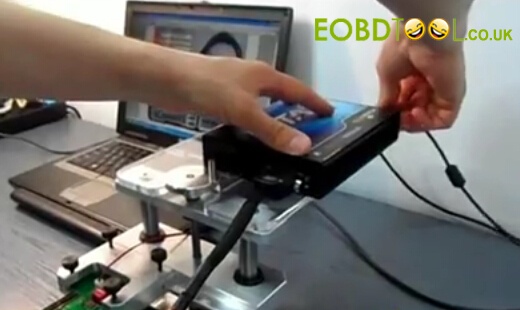

Disconnect power from adapter and connect it to the flash tool

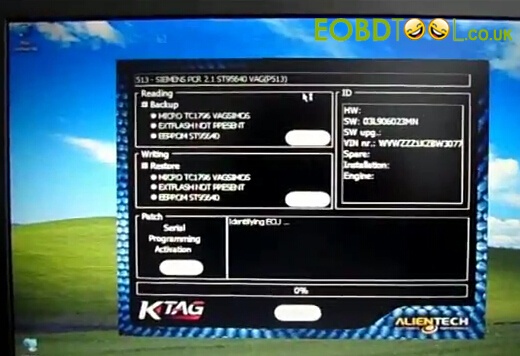

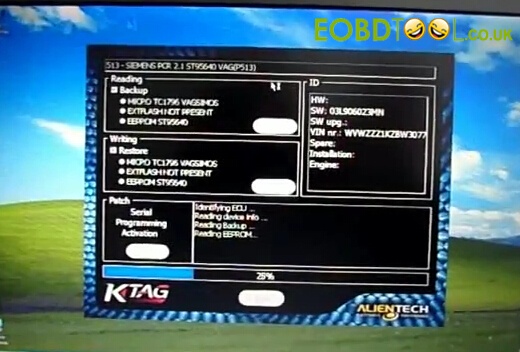

Working with Ktag

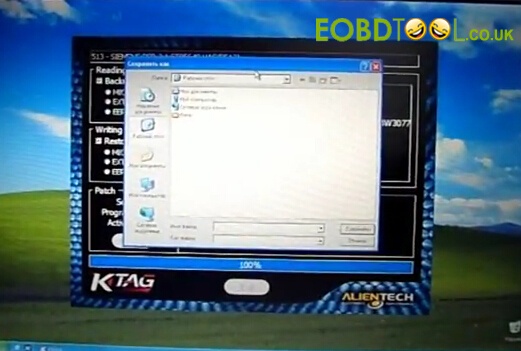

Job’s done!

Sorry for the bad resolution.
