OBDSTAR V850 Adapter Kit is a new solder-free hardware extension for immobilizer data reading from MQB-48 (5A) instrument cluster. The direct-fit custom adapter plates allow locksmiths to perform Add Key, All Keys Lost, and other key programming functions without pin lifting, soldering, or capacitor removal.
Designed for direct mounting on instrument cluster pinouts, this adapter eliminates the risk of board damage during data extraction.
Key Technical Details
- Compatible Devices:X300 Classic G3/Key Master G3, X300 Pro4/Key Master 5, X300 MINI VW
Note: OBDSTAR C4-06 Adapter is required. After installation, ensure all pins are properly aligned with the corresponding instrument cluster terminals.
- Main Functions: immobilizer data reading, key adding, all keys lost programming
- Installation:Direct-fit adapter plates, solder-free setup

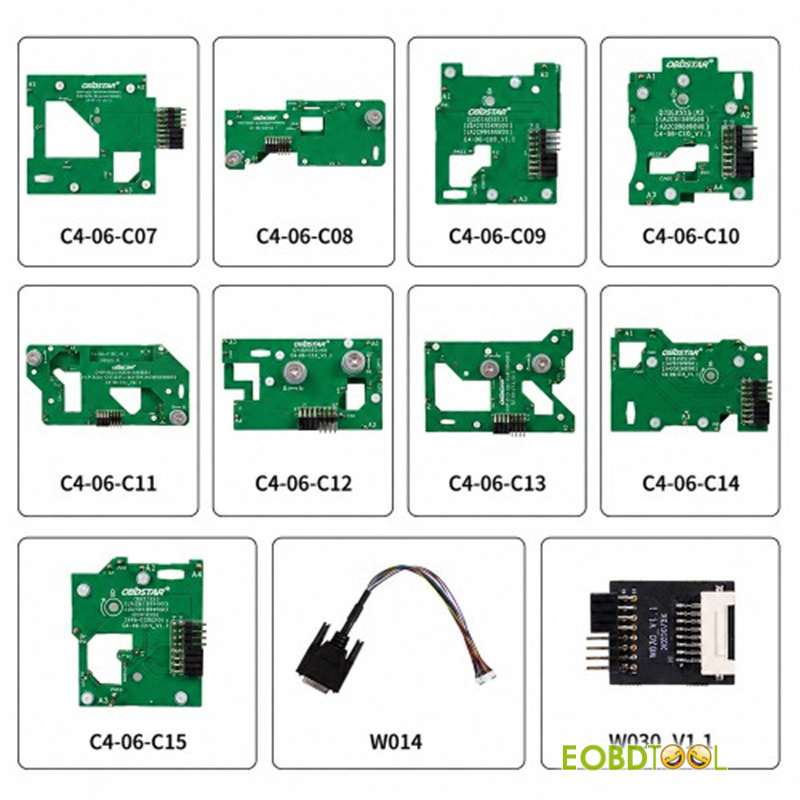

Included Board Adapters & Dashboard Types Support
- C4-06-C07: D70F3525-V1 (A2C81589600), D70F3525-V2 (A2C81589600), D70F3526-V4 (A2C81589700/A2C99606600)
- C4-06-C08: D70F3525-V3 (A2C81589600)
- C4-06-C09: D70F3526-V1 (A2C81589700/A2C99606600)
- C4-06-C10: D70F3526-V2 (A2C81589700/A2C99606600)
- C4-06-C11: D70F3526-V3 (A2C81589700/A2C99606600), D70F3525-V4 (A2C81589600)
- C4-06-C12: D70F3529-V1
- C4-06-C13: D70F3532-V2 (A2C81589500/A2C81589501)
- C4-06-C14: D70F3532-V1 (A2C81589500/A2C81589501)
- C4-06-C15: D70F3535 (A2C81589200), D70F3537 (A2C81589300/A2C81589800)
- W014+1 cable: Dedicated Conversion Harness

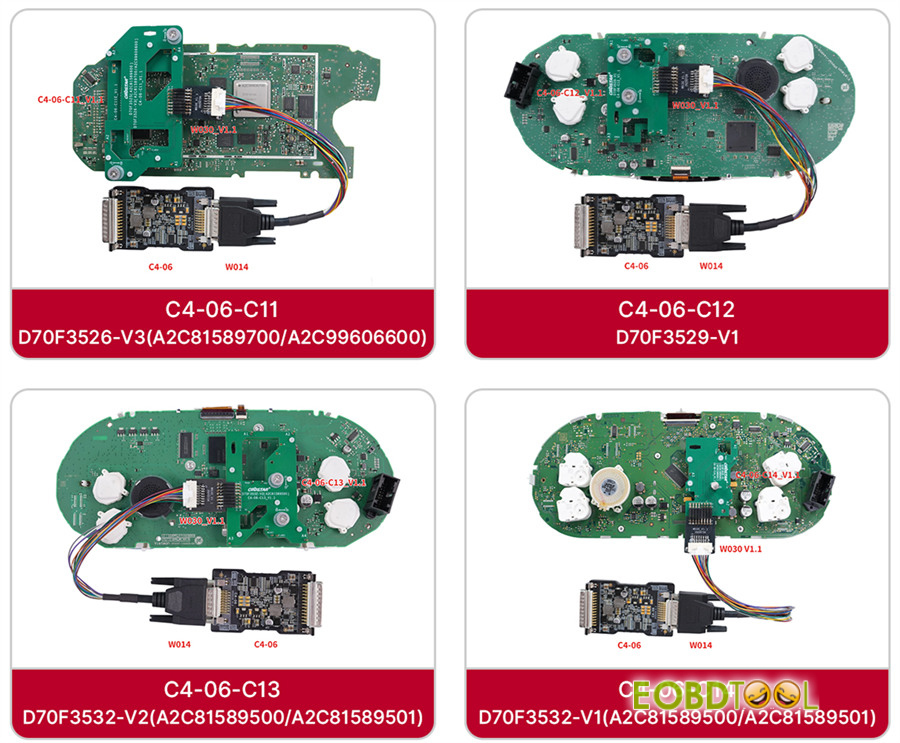

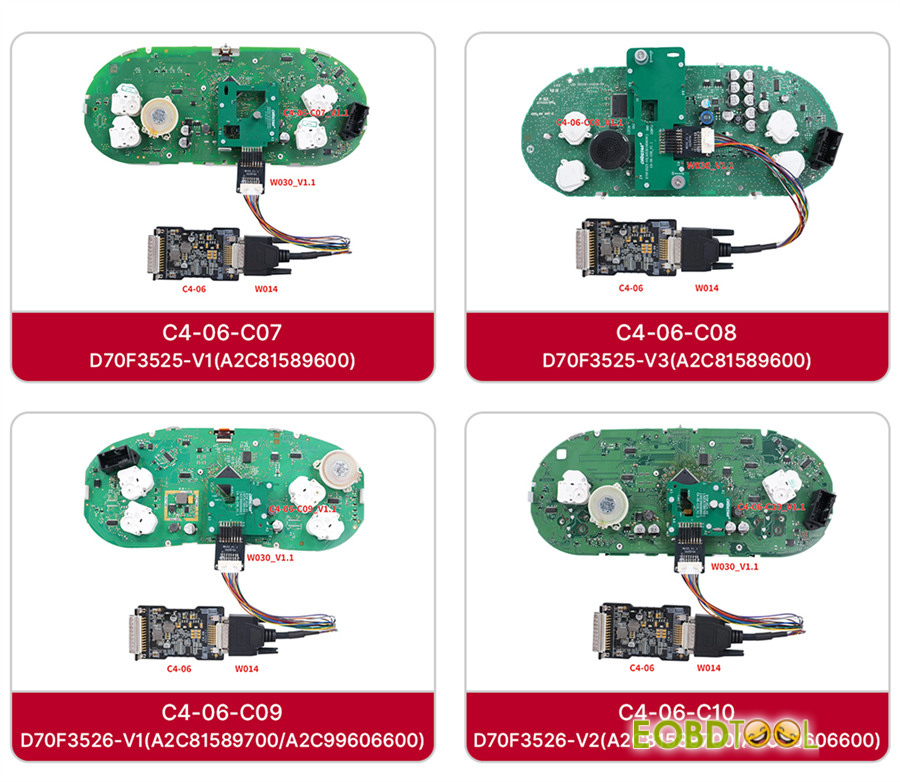

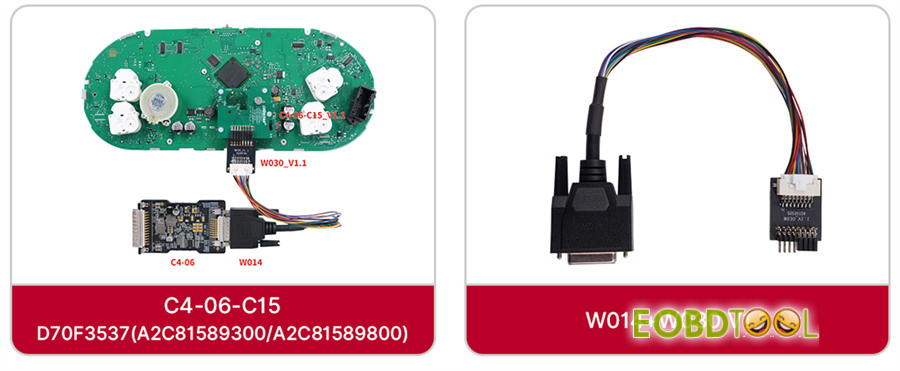

OBDSTAR V850 Adapter Kit Connection Diagrams
