Using one single Yanhua 35160 / 35080 simulator, 35160WT EEPROM mileage adjustment can be successful. This post offers step by step operation procedure.
Yanhua 35160/35080 Programming Emulator testable EEPROM models:
Youtube Video guide:
Guide in words and images:
- 1.Solder the 35XX chip on the meter to the specified location of the simulator,
pay attention to the chip direction.
- Plugthe emulator to the Mini usb cable, then plug intothe usb port of computer.
- Create a new folder on your desktop, for example, named “mileage modification.”
- Copy the compressed file “35xx mileage modification tool .rar”and paste it onthe desktop “mileage modification” folder.

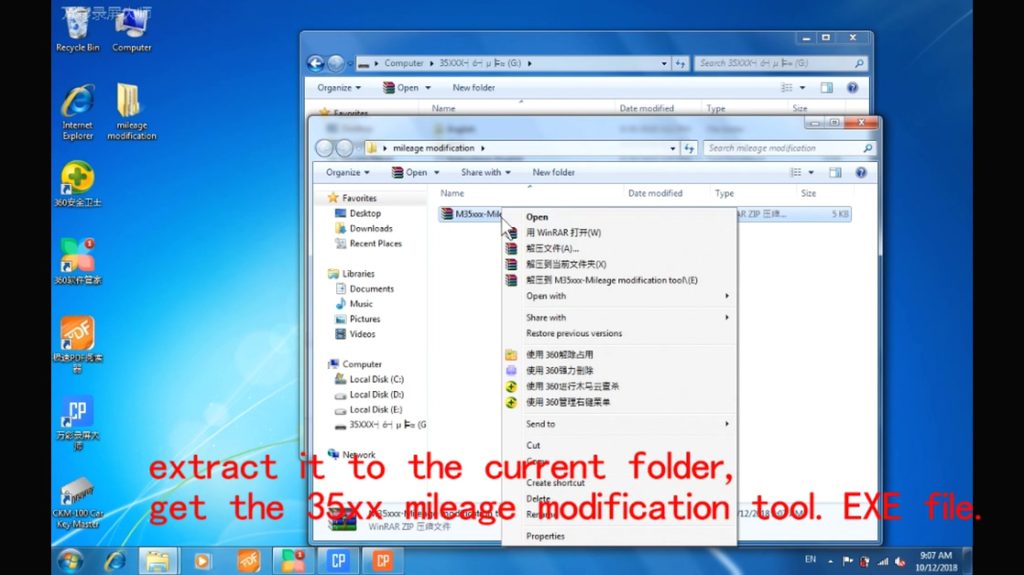

Extract it to the current folder to get the file of “35xx mileage modification tool .exe”
- Copy the original data to the “mileage modification” folder on the desktop .
According to the original car chip model, select the corresponding original data and copy it to the “mileage modification” folder on the desktop.
(If the original car chip is 35080, choose 35080 raw data.bin; if the original car chip is 35160, choose 35160 raw data. bin)
- Open the “mileage modification” folder, drag the original data to the modification tool or double-click to open the “35XX mileage modification tool”, drag the original data into the tool interface and press Enter to confirm.
- Enter the mileage data you want to modify as prompted (Note: don’t forget to input the unit, for example: XXXkm or XXXmi), then press Enter to confirm, and the new file 35xxx raw data _yyyy.bin will be automatically generated.
- Open the “35XX Memory” USB flash drive, delete the 35xxx simulated data .bin file of the corresponding chip (note the “simulated” data file), and then copy the 35xxx original data _yyyy.bin file generated in the “mileage modification” folder to the “35XX memory” U disk.
- Data comparison
Re-plug the simulator, open the “35XX memory” U disk.
Compare the newly generated simulated data of the corresponding chip and the modified data in the “mileage modification” folder. If the data is the same, the operation is successful. Solder the simulator to the instrument chip location.
Done. Yanhua 35160 / 35080 programming Emulator correct mileage for 35160WT complete.
Tip: The copied raw data.bin file is recommended to be saved to the computer, so that the data can be recovered when the operation is wrong. If the operation is abnormal, don’t be nervous. Unplug the usb and plug it back to restore normal.
