Hantek 1008A 8CH PC Digital Oscilloscope all information here

Hantek 1008A is an 8-channel PC digital oscilloscope which can be used in a wide variety of situations like vehicle testing. It’s software support Windows NT, Window 2000, Windows XP, VISTA, Windows 7 and Windows 8.

Free download Hantek 1008A 8CH PC Digital Oscilloscope user manual+ software+ driver:

http://www.eobdtool.co.uk/upload/pro/hantek1008-manual.pdf

Hantek-1008a-oscilloscope-1

Hantek 1008A 8 Channel Oscilloscope main features:

DAQ card function

12bit vertical resolution

2.4MSa/s real time sampling rate

USB 2.0 interface, no need extra power supply

More than 20 types of automatic testing function

8 channels programmable generator analog signals of crankshaft, camshaft etc

Hantek-1008a-oscilloscope-2

Hantek 1008A 8 Channel Oscilloscope software interface:

  1. Trigger information (edge trigger slope, source and level)
  2. Main time base setting
  3. The Horizontal Panel
  4. The Vertical Panel
  5. The Trigger Panel
  6. “T” marker shows edge trigger level
  7. CH1-CH8 information
  8. This status indicates it connected via USB
  9. “T” marker shows horizontal trigger position
  10. Trigger status (AUTO/ Trig’D/ WAIT/ STOP/ RUN/ PLAY)

Hantek 1008A Math Function Display:

Hantek-1008a-oscilloscope-3

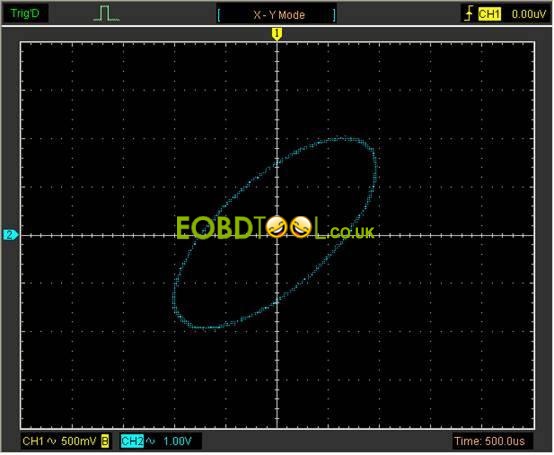

Hantek 1008A Signal in X-Y Format:

Hantek-1008a-oscilloscope-4

Hantek 1008A test report:

Hantek-1008a-oscilloscope-5

Hantek 1008A Oscilloscope reviews and feedbacks:

The Hantek 1008A are great since I need to monitor 6 at a time. This was a saving grace tool for electric motor work. Also I found that to do a scope run and save the result.

This tool Hantek 8 channels Oscilloscope is functional and within my budget. It works great getting forms from cool, crank, cam. It is easy to set up trigger points, time, and scale. I was able to solve a problem on an electrical circuit. Over all, I am happy with what I get for the price.

Checking the signal wires on TPS, MAP sensors, MAF sensors this tool works beautifully without the need for special adapters. With it I get beautiful primary ignition coil wave forms. I can see the dwell and measure it in milliseconds with the cursors, the inductive spike and the spark line. I often diagnose bad coils by lack of a clear spark line. Also I can use the attenuator to check the ground or control side of fuel injectors. It always show a good inductive spike with a well functioning fuel injector

I have used Hantek products before and they work just fine for the price. Software is a little glitch but not so bad. This tool works very well for capturing transients and troubleshooting digital systems.

Hooked to laptop by USB, was able to monitor several engine sensors on a Pontiac. Software installed on laptop with no problem. I have used Oscilloscopes since 1960. The “Hantek 1008A” WORKED GREAT!
