Both Launch X431 PRO3S+ V5.0 Elite and Autel MaxiSys MS906 PRO are comprehensive diagnostic tools. What is the main difference between them? How to choose?
Below is the detailed comparison covering hardware, software function, cloud service, add-on function, and SGW unlock function.
Comparison Table 1: Hardware
| Item | Launch X431 PRO3S+ V5 | Autel MS906 PRO |

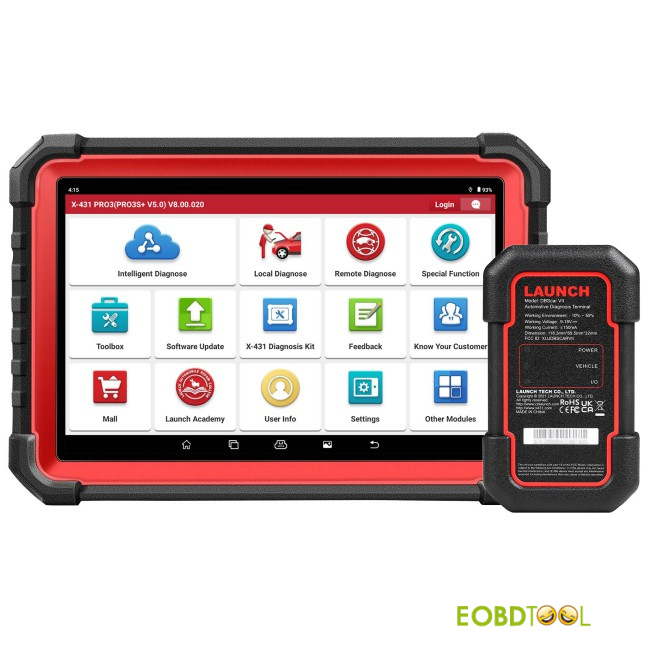

| Image |  |
 |
| Price | €799.00 | €999 |
| CPU | 4-core CPU | 8-core CPU |
| RAM/ROM | 4+64G | 4GB +128GB |
| Battery Capacity | 6300mAh | 11600 mAh |
| Android Version | Android10 | Android 10.0 |
| Display | 10.1 inch | 8 inch |
| Resolution | 1280*800 | 1920*1200 |
| WIFI | 2.4 & 5 GHz | 2.4 & 5 GHz |
| Bluetooth | √ | √ |
| USB | / | USB 2.0: (L USB HOST Type A, 1 USB mini device) |
| HDMI | X | HDMI 2.0 |
| SD Card | / | SD Card (support up to 64GB) |
| Headphone Jack | / | Yes |
| Microphone | / | 1MIC |
| Speaker | / | 2 pcs |
| GPS | / | √ |
| Light Sensor | √ | √ |
| Buttons | / | 1 Lock/Power Button |
| Camera | Rear: 8MP | Rear: 16 MP, Front: 16 MP |
| Lower Computer | DBScar VII | V200 |
| Connection Method | BT/USB | BT/USB |
Comparison Table 2: Software Function
| Item | X431 PRO3S+ V5.0 | Autel MS906Pro |
| Main Software Functions | ||
| Read/Clear Codes | √ | √ |
| Data Stream | √ | √ |
| Freeze Frame | √ | √ |
| ECU Information | √ | √ |
| Service Functions | √ | √ |
| Special Functions | √ | √ |
| Actuation Tests | √ | √ |
| Advanced Functions | ||
| ECU Online Programming | X | X |
| ECU Online Coding | BMW, VW, Audi, Skoda, SEAT, Porsche, etc. | BMW, Mini, Audi, Porsche, VW, VW_Brazil |
| Coding (Hidden Features) | Benz, BMW, VW, Audi, Skoda, SEAT, Porsche, Jeep, Dodge, Chrysler, Toyota, Honda | BMW, VW, Audi, Skoda |
| Guided Functions | Volkswagen / Audi / Skoda / Seat | VW, Audi, Skoda, Seat, Man LD |
| High Voltage System Diagnosis | X | X |
| High Voltage Battery Offline Test | X | X |
| High Voltage Component Test | X | X |
| Topology Map | √ | X |
| Special Vehicle Diagnosis | ||
| Identification Diagnosis | √ | X |
| Tesla Diagnosis | √ | X |
Comparison Table 3: Cloud+ Add-on Function+ SGW
| Item | X-431 PRO3S+ V5.0 | MS906 Pro |
| Cloud Services | ||
| Remote Expert C-end | / | √ |
| Report Management | / | √ |
| TPMS Comprehensive Function | Yes, with TPMS add-on module | X |
| Expansion Functions | ||
| Oscilloscope Function | Need to purchase separately | Requires MP408 |
| Endoscope Function (with MV105/MV108/MV105S/MV108S) | √(Optional) | √(Optional) |
| Complete Four-wheel System | X | X |
| ADAS Calibration | Need to purchase separately | X |
| Battery Test (with BT506) | Need to purchase separately | √(Optional) |
| Add EVbox to upgrade to EV product | X | X |
| Multimeter | X | X |
| J2534 & RP1210 | X | X |
| DoIP | Requires adapter | √ |
| CAN FD | Requires adapter | √ |
| Pre & Post Scan | X | √ |
| Auto VIN | √ | √ |
| WIFI Print | / | √ |
| Gateway Unlock Functions | ||
| FCA Gateway Unlock | √ | √(May vary by region) |
| Renault Gateway Unlock | √ Buy software package (May vary by region) | √ |
| Nissan Gateway Unlock | / | √(Only Japan, some European countries and North America) |
| VAG SFD Gateway Unlock | √ Buy software package (May vary by region) | √ |
| Benz Autoauth Gateway Unlock | √ (Only European region), buy software package | √(Only USA) |
In summary
Both Autel MS906 Pro and Launch X431 Pro3S+ V5.0 are highly capable diagnostic systems, each with distinct strengths.
MS906Pro stands out in hardware performance, featuring a more powerful processor, greater memory, a higher-capacity battery, and a sharper display with HDMI 2.0 support.
Its software supports newer vehicles and receives faster updates.
It also offers expanded functionalities such as remote expert support, report management, and direct VCI support for CAN FD/DoIP protocols.
On the other hand, X431 Pro3S+ V5.0 Elite is more affordable and comes with a larger screen. Its key advantage lies in support for numerous add-on modules, including X431 Smartlink C Heavy-duty truck module, TPMS, videoscope, EV kit, X431 key programmer, IMMO software, oscilloscope, and motorcycle diagnostics.
It also offers broader expansion capabilities and includes topology mapping.
Your choice should depend on your specific needs:
Choose X431 Pro3S+ if you require truck diagnostics or TPMS functionality.
If your work focuses primarily on automotive diagnostics, choose MS906 Pro.
