Hello! Here comes the instruction for programming via VXDIAG VCX NANO for Land Rover and Jaguar.
NOTE:
Security system needs to do programming online with the account password.
Other systems do not need programming online.
An external voltage regulator is needed for the vehicle to make its voltage meet the prompted demands.
Please be strict with programming according to the software.
Video guide in Chinese:
Detailed instruction in English:
Open the SDD interface via Internet. Click “service function”.

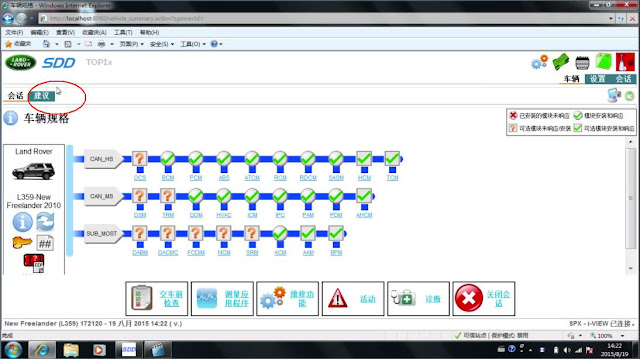

Click “Suggestion” after data collecting.
Select “Configure the new module. – the rear differential control module”
Click the “Agree” button.
Turn on the ignition switch (Position 2) according to the instruction on the screen. Then click the tick button to go on.
Make sure that your vehicle voltage is more than 12.50V; otherwise the SDD cannot be used.
Make sure the connected battery charger is recognized.
Then click the tick button to go on, or to exit if the above demands cannot be met.
Turn on the ignition switch (Position 0).Then click the tick button to go on.
Turn on the ignition switch (Position 2).Then click the tick button to go on.
Click the tick button.
Click the click button.
Click the NotificationChevron button.
Click the tick button.
Turn on the ignition switch (Position 0).Then click the tick button to go on.
Click the tick button to continue.
Turn on the ignition switch (Position 2).Then click the tick button to go on.
Click the tick button to continue.
Click the tick button.
Turn on the ignition switch (Position 0).Then click the tick button to go on.
Turn on the ignition switch (Position 2).Then click the tick button to go on.
Click the tick button to clear all the fault codes.
Click the tick button to continue.
Turn on the ignition switch (Position 0).Then click the tick button to go on.
Click the tick button.
Turn on the ignition switch (Position 2).Then click the tick button to go on.
Click the tick button to finish control module procedure.
Turn on the ignition switch (Position 0).Then click the tick button to go on.
END.
