VVDI prog 2.1.0 super programmer version:
1.0 2015-03-18 OriginalVersion
1.1 2015-07-27 Add BMW engine read & write; Add pin code calculator for multi-brand vehicle models.
VVDIProg Top 6 features:
1) The built-in update software allows user to update VVDIProg firmware timely.
2) High-speed USB communication interface enable the software automatically connected.
3) Smart operation mode: the possible causes of error will be listed
4) Reserve ports for future update.
5) The self-test function enable you check if the machine works well.
6) Support direct connection from power supply to USB,the software will automatically prompt if the external USB power supply is needed.
VVDIProg programmer cables/connectors & connection instructions
16pin locking socket
Read the common EEPROM, note: please insert the chip by following the below picture.

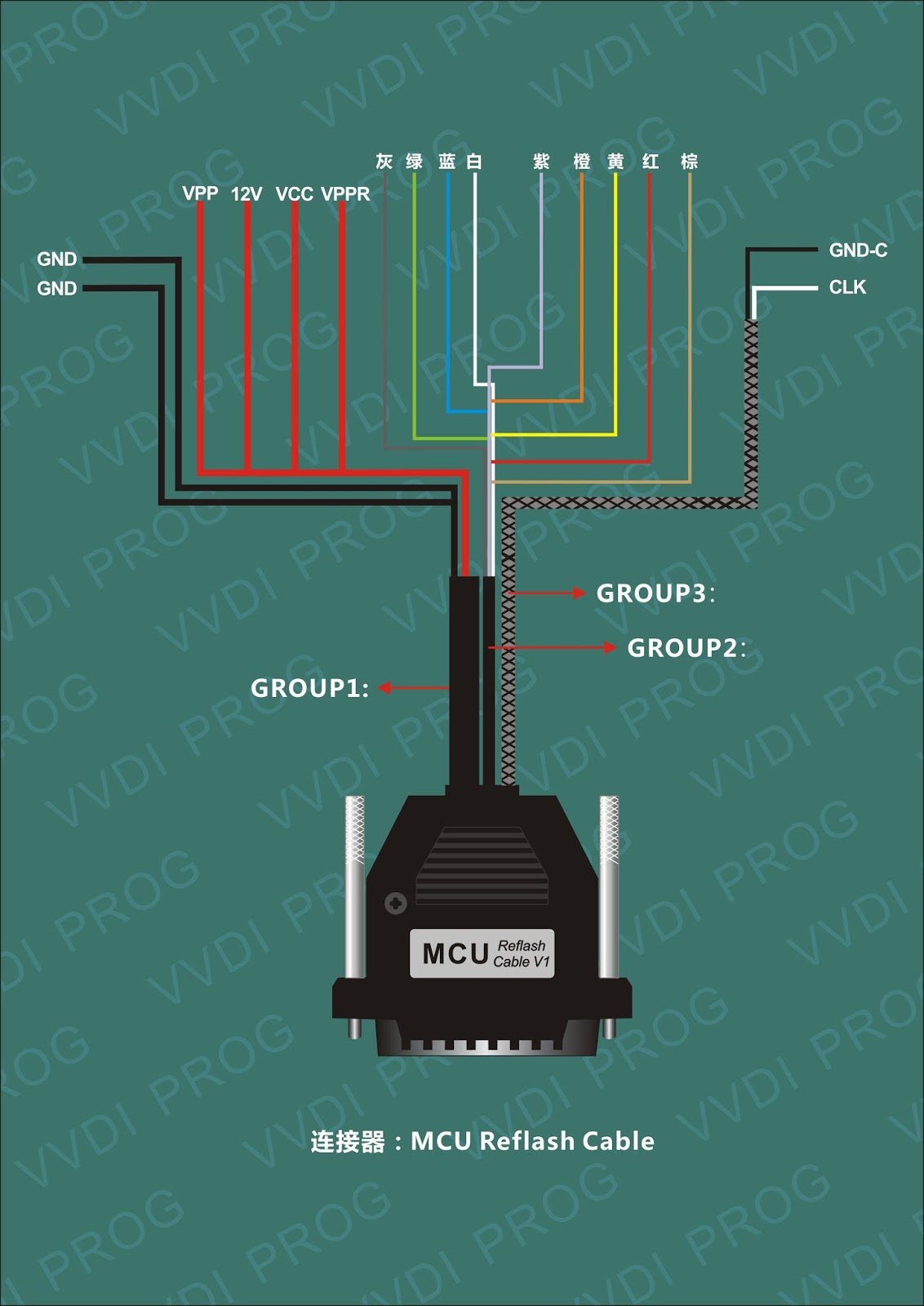

MCU Reflash cable
Used to program MCU on board
ECU Reflash cable
Used to program ECU

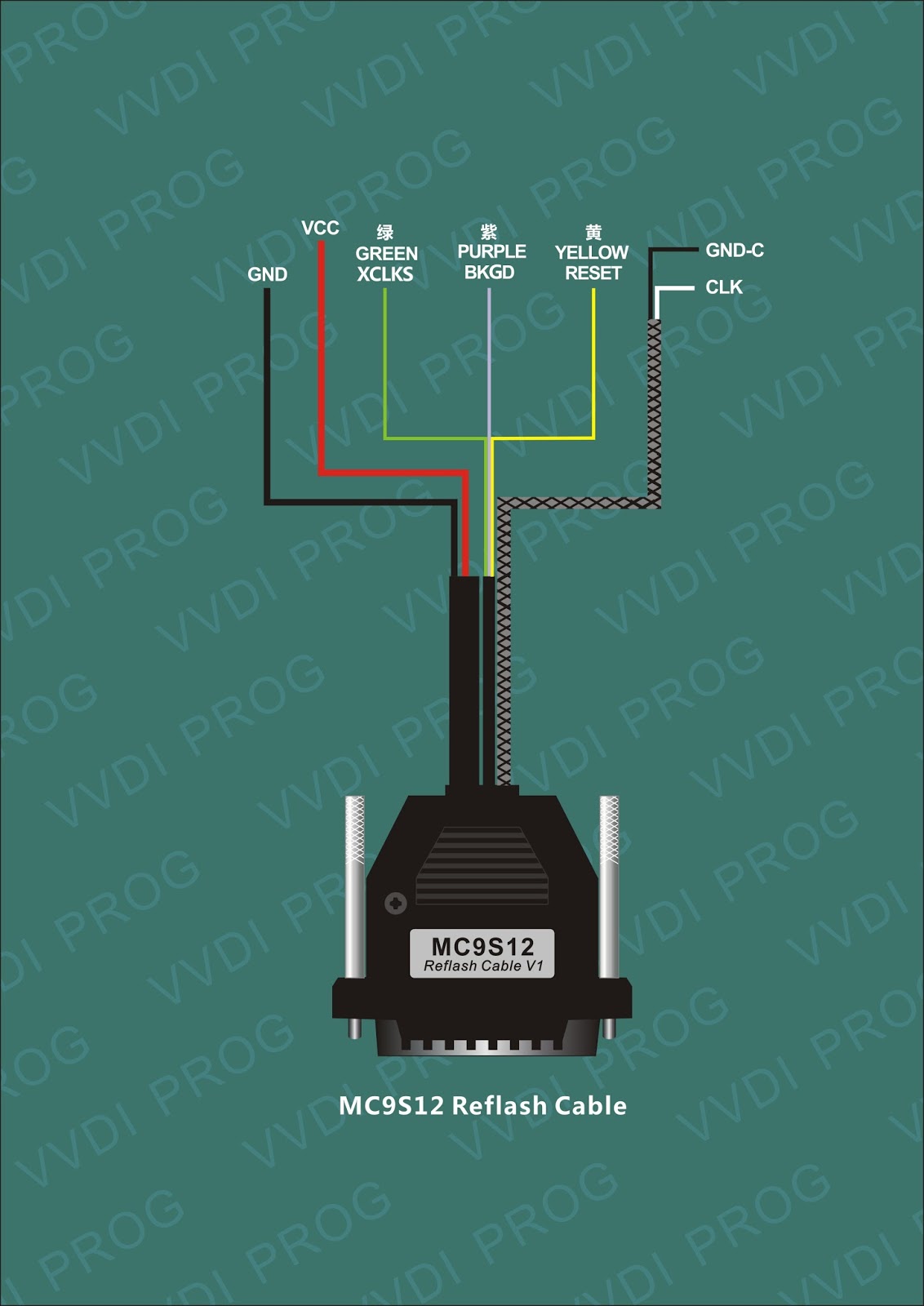

MC9S12 Reflash cable
Used to program MC9S12 series chip
Connection & pinout:

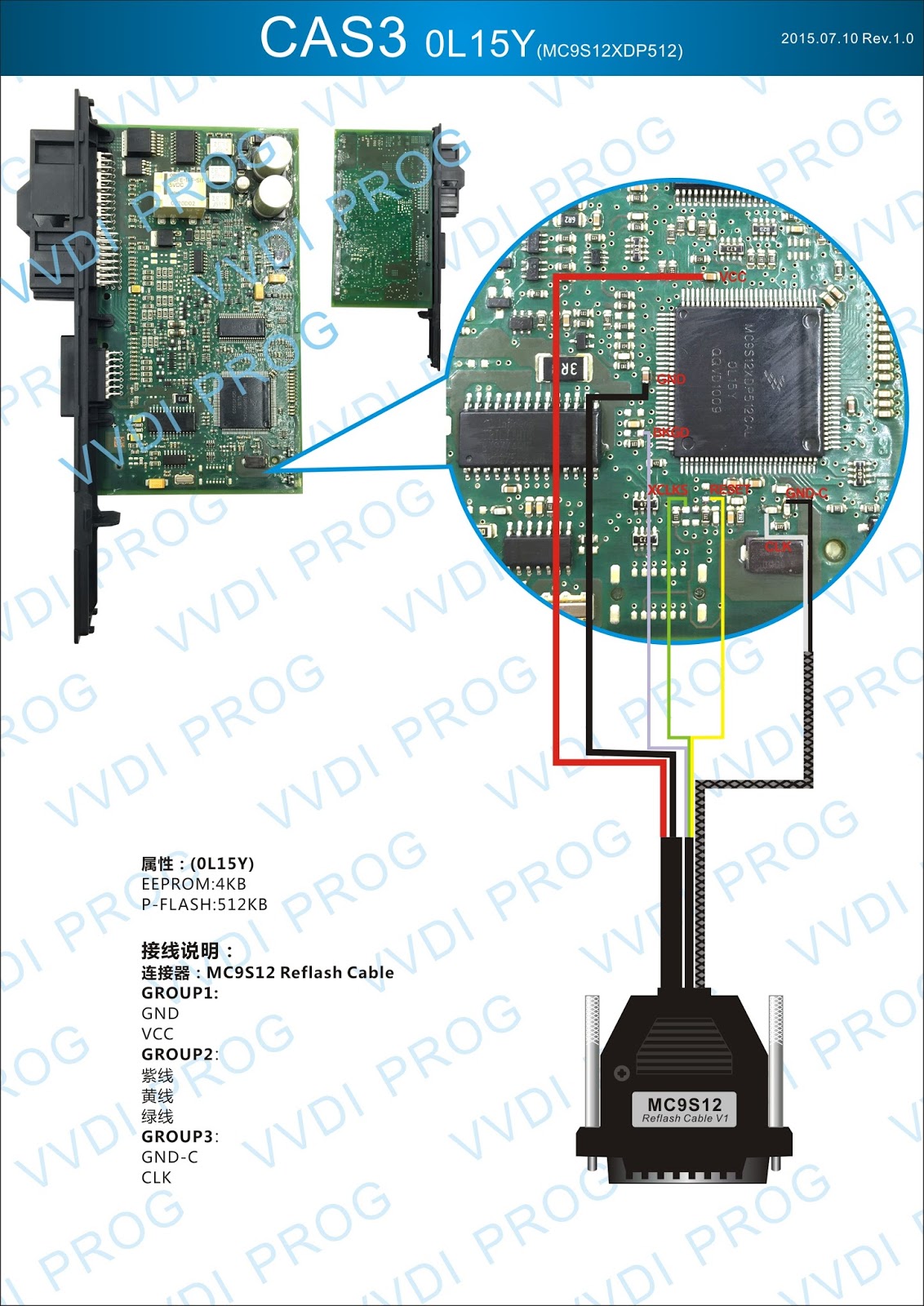

CAS3 OL15Y pinout

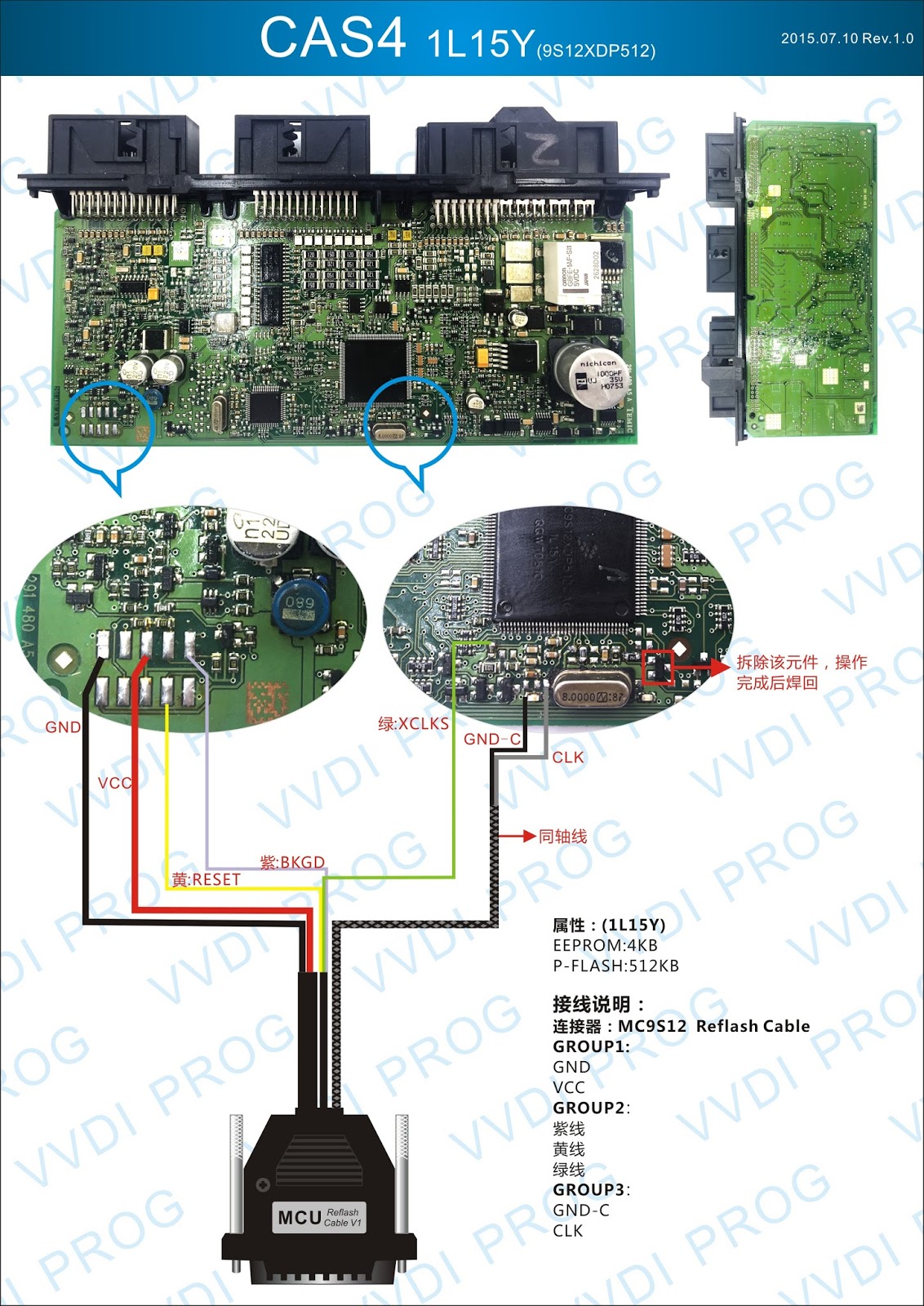

CAS4 1L15Y pinout
CAS4 5M48H pinout

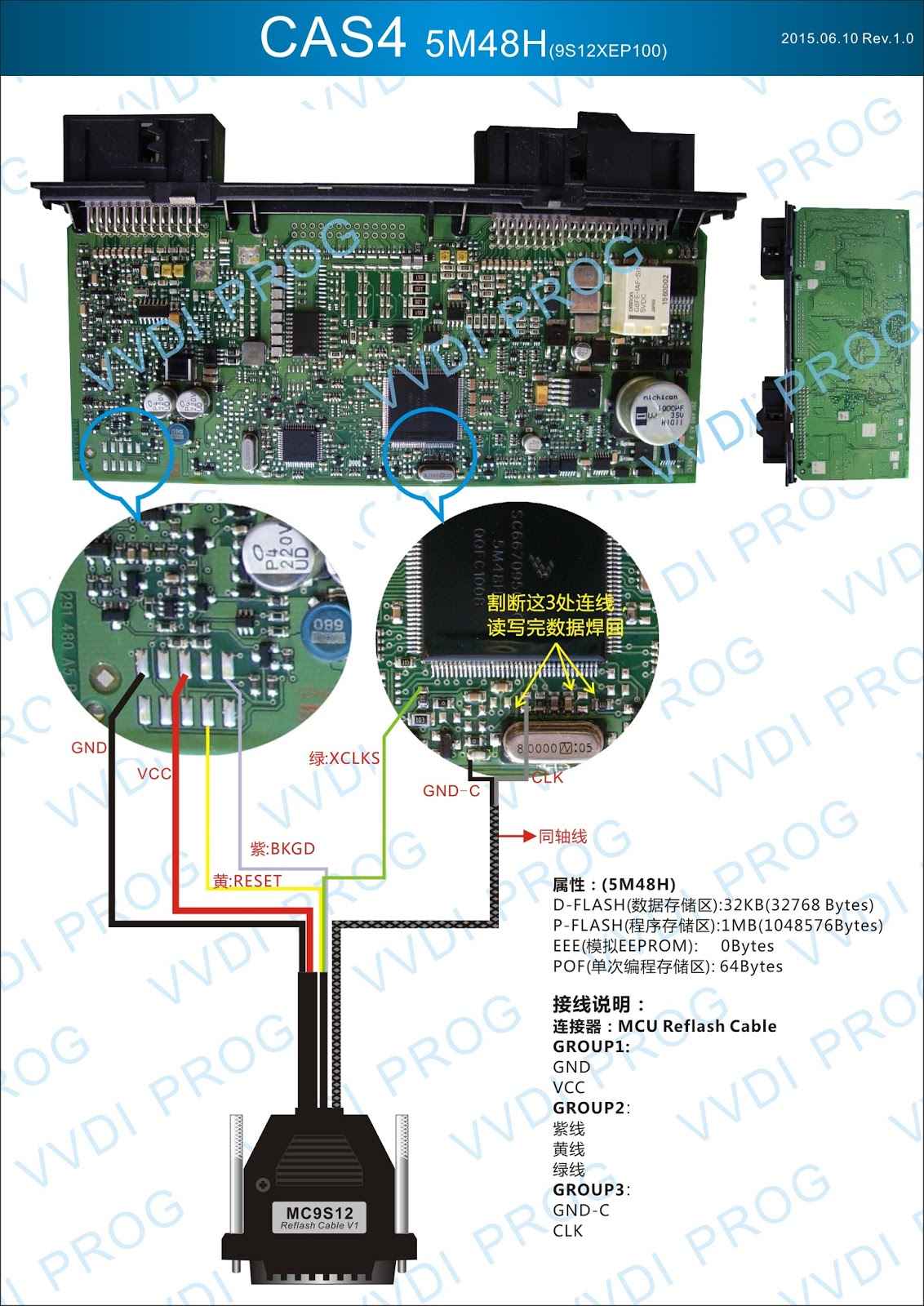

Delphi 48 Immobilizer pinout
MEVD172(N55), MEVD1726(N55), MEVD172G(N55), MEVD1725 (N55), MEVD172Y(N55) engine model connection & pinout

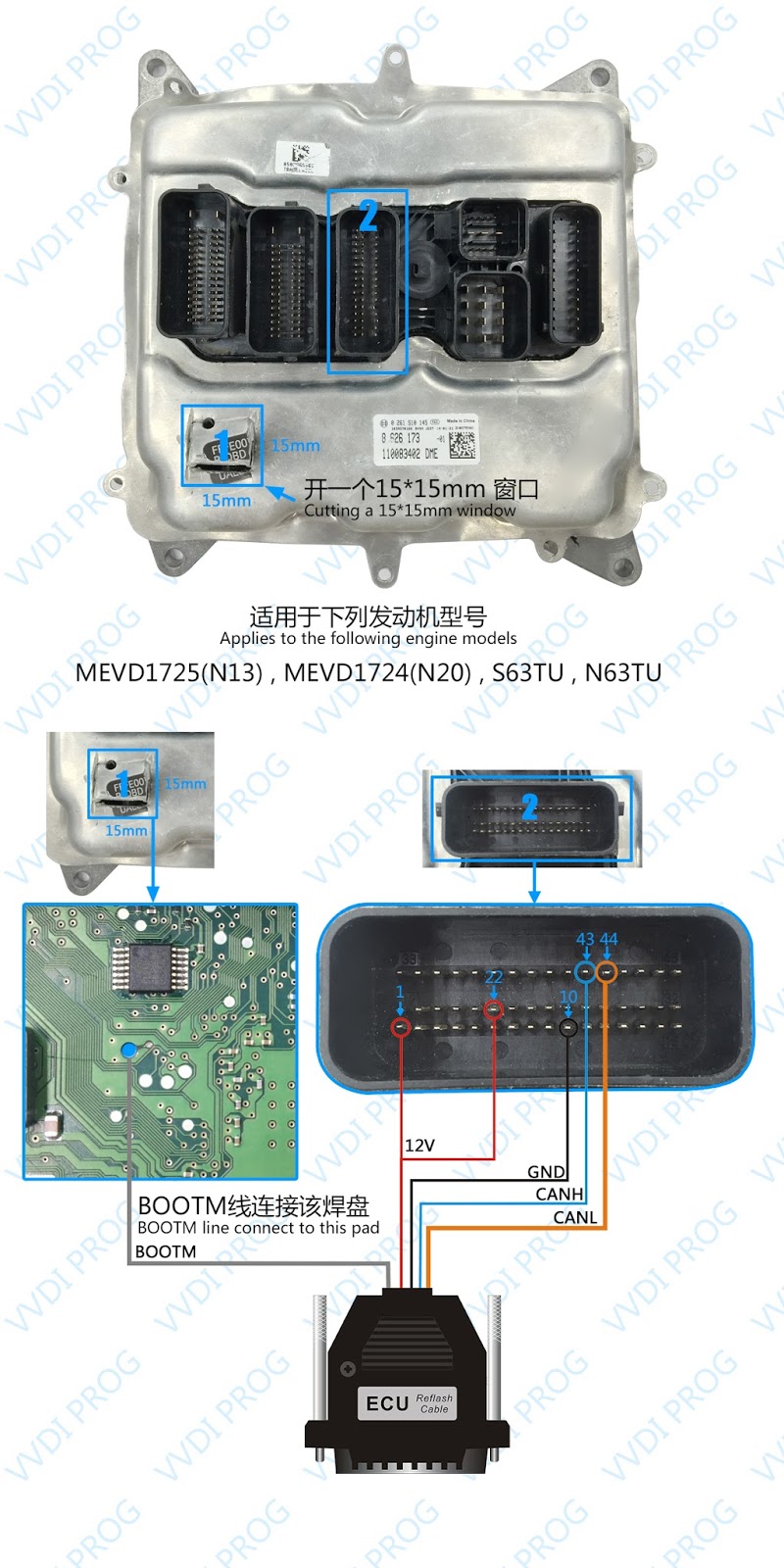

MEVD1725(N13), MEVD1724 (N20), S63TU, N63TU engine models connection & pinout
VVDIProg support chip list:
EEPROM
|
Manufactures
|
Types
|
Support
|
Remark
|
|
ATMEL
|
AT24CXX
|
R
|
|
|
AT25XXX
|
R
|
||
|
AT93CX6
|
R
|
||
|
BOSCH
|
B3XX
|
R
|
|
|
B4XX
|
R
|
||
|
B5XX
|
R
|
||
|
B58XXX
|
R
|
||
|
CATALYST
|
CAT24CXX
|
R
|
|
|
CAT24WXX
|
R
|
||
|
CAT93CX6[A]
|
R
|
||
|
EXEL
|
XL[S]24CXX
|
R
|
|
|
XL[S]93CX6
|
R
|
||
|
FAIRCHILD
|
FM24CXX
|
R
|
|
|
NM24CXX
|
R
|
||
|
NM93CX6
|
R
|
||
|
GRUNDIG
|
GRXX
|
R
|
|
|
HOLTEK
|
HT93CX6
|
R
|
|
|
MICROCHIP
|
24AAXX
|
R
|
|
|
24[L]CXX
|
R
|
||
|
93[L]CX6
|
R
|
||
|
93AAX6
|
R
|
||
|
MITSUBISHI
|
M6M800X1
|
R
|
|
|
SEIKO
|
S-24CXX
|
R
|
|
|
S-93CX6
|
R
|
||
|
ST
|
D80/D160
|
R
|
Can erase the first 32 bytes
|
|
M35080
|
R
|
Can erase the first 32 bytes
|
|
|
NEC
|
M24CXX
|
R
|
|
|
ST
|
ST24CXX
|
R
|
|
|
ST24EXX
|
R
|
||
|
ST24WXX
|
R
|
||
|
ST25CXX
|
R
|
||
|
ST25EXX
|
R
|
||
|
ST95P0X
|
R
|
Note: R means the type is available, £ means the type will be supported in the future
MCU
|
Manufactures
|
Types
|
Support
|
Remark
|
|
MOTOROLA
|
MC9S12XEP
|
R
|
Can automatically determine D-FLASH/EEE space
|
|
MC9S12XA
|
R
|
||
|
MC9S12XB
|
R
|
||
|
MC9S12XD
|
R
|
||
|
MC9S12XDT
|
R
|
||
|
MC9S12XDP
|
R
|
||
|
MC9S12XDQ
|
R
|
||
|
MC9S12DG
|
R
|
||
|
MC9S12DT
|
R
|
||
|
MC9S12P
|
R
|
||
|
MC9S12H
|
R
|
||
|
MC9S12HY
|
£
|
||
|
MC9S12HA
|
£
|
||
|
MC9S12HZ
|
£
|
||
|
MC9S12XHZ
|
£
|
||
|
MC9S12B
|
£
|
||
|
MC9S12GC
|
£
|
||
|
MC9S12XS
|
£
|
||
|
MC9S12K
|
£
|
||
|
MC9S12Q
|
£
|
||
|
MC9S12C
|
£
|
||
|
MC9S12P
|
£
|
||
|
MC9HC(9)08
|
£
|
||
|
ATMEL
|
ATTINY
|
£
|
|
|
ATMEGEA
|
£
|
||
|
NEC
|
uPD70F
|
£
|
|
|
ST
|
TMS370
|
£
|
Note: R means the type is supported £ means the type will be supported in the future.
ECU
|
Manufactures
|
Types
|
Support
|
Remark
|
|
VAG
|
MED17.1-TC1796
|
£
|
|
|
MED17.11-TC1796
|
£
|
||
|
VAG MEG17.5-TC1766
|
£
|
||
|
VAG MED17.5.1-TC1796
|
£
|
||
|
VAG MED17.5.2-TC1767
|
£
|
||
|
VAG MED17.5.5-TC1766
|
£
|
||
|
VAG MED17.5.20-TC1766
|
£
|
||
|
VAG EDC17 CP14/CP20-TC1796
|
£
|
||
|
VAG EDC17 CP04-TC1796
|
£
|
||
|
VAG EDC17 C46-TC1767
|
£
|
||
|
VAG EDC17 CP24-TC1796
|
£
|
||
|
VAG EDC17 CP44-TC1797
|
£
|
||
|
VAG EDC17 U01-TC1766
|
£
|
||
|
VAG EDC17 U05-TC1796
|
£
|
||
|
VAG/Porsche Siemens Continental SDI 3-
TC1796
|
£
|
||
|
BMW
|
MEVD172(N55)
|
R
|
|
|
MEVD172P(N20)
|
R
|
||
|
MEVD172G(N55)
|
R
|
||
|
MEVD172S(N55)
|
R
|
||
|
MEVD1724(N20)
|
R
|
||
|
MEVD1725(N13)
|
R
|
||
|
MEVD1726(N55)
|
R
|
||
|
MEVD1729(N20)
|
R
|
||
|
MEVD1728(N63/S63)
|
R
|
Note: R means the type is supported £ means the type will be supported in the future.
