Great news for automotive locksmiths! Lonsdor Tech has just rolled out a massive software update for Lonsdor K518 Pro and other K518 series key programmers.
With this latest upgrade, users can now easily perform key programming for newer models, including the 2021+ Toyota Yaris/GR86, 2022+ Subaru BRZ, and Daihatsu Gran Max. You can obtain the required PIN code via third-party services or get a rolling code calculation directly from Lonsdor engineers for a fee ($30 USD per PIN code).
Here is a complete breakdown of the new coverage, menu paths, and how to use the code calculation service.
New Vehicle Coverage & OBD Menu Paths
1. Toyota Yaris (2021+) — 4A Mechanical Key
-
- Features Supported:All Keys Lost (AKL) programming via OBD.
- Menu Path:Toyota \ Select from vehicle \ Asia \ Yaris \ 2021- \ Mechanical key(4A)
2. Toyota GR86 (2021+)
- Features Supported:Add Key via OBD; Supports Lonsdor LT20 universal smart keys.
- Menu Path:Toyota -> Select from vehicle -> Asia -> GR86 -> 2021- -> PEPS (CAN)
3.Daihatsu Gran Max (Up to 2022) — 4A Mechanical Key
- Features Supported:All Keys Lost (AKL) programming via OBD.
- Menu Path:DAIHATSU \ Select from vehicle \ Asia \ Gran Max \ -2022 \ Mechnical key(4A)
4.Subaru BRZ (2022+) — First Release!
- Features Supported:Add Key via OBD; Supports Lonsdor LT20 universal smart keys.
- Menu Path:SUBARU \ Select from vehicle \ Asia \ Brz \ 2022- \ Smart key(CAN)
How to Calculate the Rolling Code PIN from Lonsdor?
To prevent fraud and confirm an authentic All Keys Lost situation, Lonsdor requires an on-site video when you submit your calculation request.
When filming the video, make sure to clearly show these 3 crucial details:
- The Instrument Cluster:The dashboard cluster must remain completely unlit.
- The Center Console:The screen/console must show that the car is entirely inactive (proving it’s an AKL scenario).
- The OBD Port:Only Lonsdor K518 device should be connected to the OBD port. Make sure no other data-logging or collection tools are plugged in.
The Process:

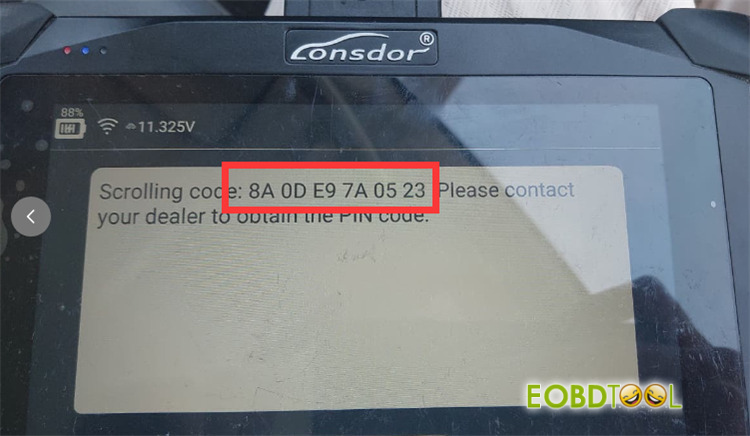

Complete your payment, extract the rolling code using your K518 key programmer, and send the code to your distributor/Lonsdor engineer. They will calculate the PIN code and send it back to you.
