If your 2016 Porsche Macan is throwing a stubborn TPMS fault code on the dashboard, a faulty tire pressure sensor is often the culprit. This comprehensive, step-by-step guide walks you through diagnosing, programming, and relearning a new sensor using Launch Creader TPMS 511S V2 (also sold as the e-commerce version TPMS 5011 V2).
Vehicle & Tool Overview
- Vehicle: 2016 Porsche Macan
- Symptom: TPMS fault illuminated on the instrument cluster
- Diagnostic Tool: Launch Creader TPMS 5011 V2/ TPMS 511S V2
Step 1: Diagnose and Identify the Faulty Sensor
Power on the tool, select [TPMS], and choose [PORSCHE].

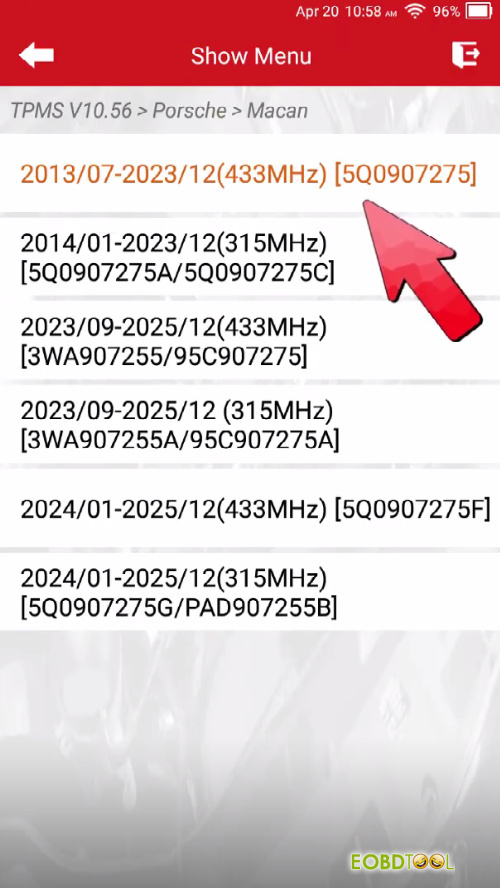

Navigate to [Macan] and select the 2016 model year menu (e.g., 2013/07-2023/12 (433MHz) [5Q0907275]).
Tip: If multiple menus appear, try an alternative one if activation fails.
Select [Active] and trigger all four wheel sensors.
Diagnosis: If the FR, RR, and RL sensors trigger successfully but the Front Left (FL) wheel fails to respond, your FL sensor is dead and requires replacement.
Step 2: Program the New Launch Sensor
Remove the damaged OEM sensor.

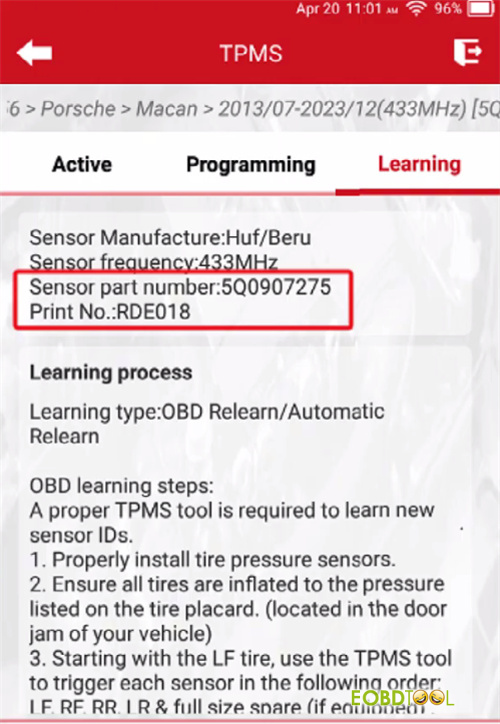

Go to [Learning] on your Launch TPMS 5011 V2 tool and verify the original sensor part number or print number matches the menu. (Note: If you’re swapping a non-OE aftermarket sensor, skip verification and move forward.)

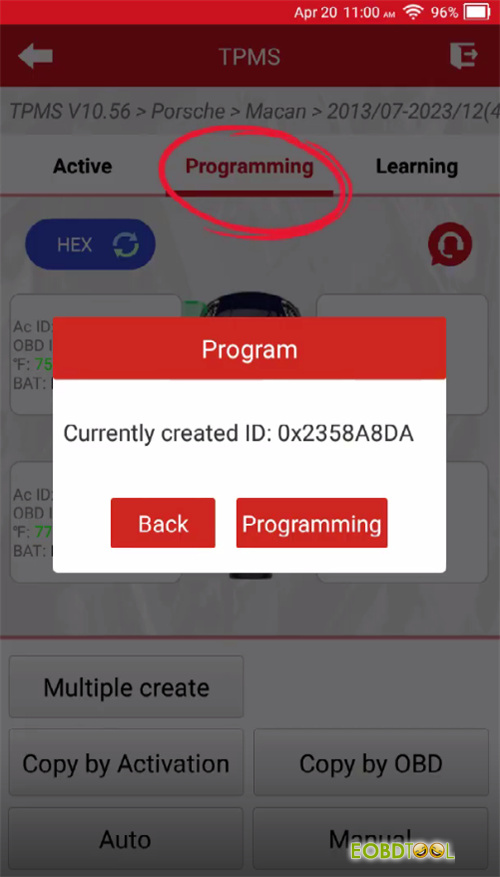

Click [Programming] and select [Auto] to create a new ID automatically.
Alternative Methods: You can also input the original ID via [Manual] or clone it using [Copy by OBD].
Keep the tool close and wait for the programming sequence to hit 100%.
Step 3: Installation and Final Activation

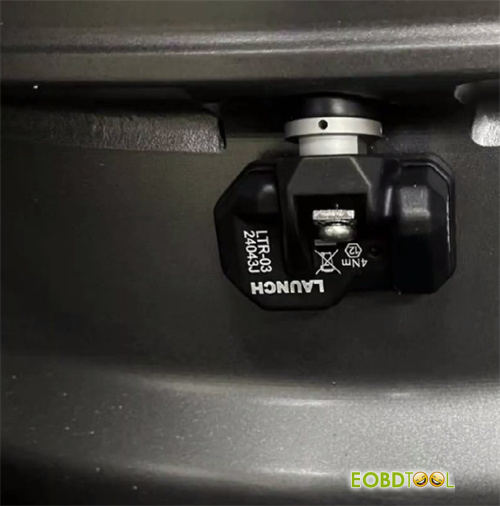

Install the newly programmed Launch sensor into the FL wheel and inflate the tire to standard factory spec.

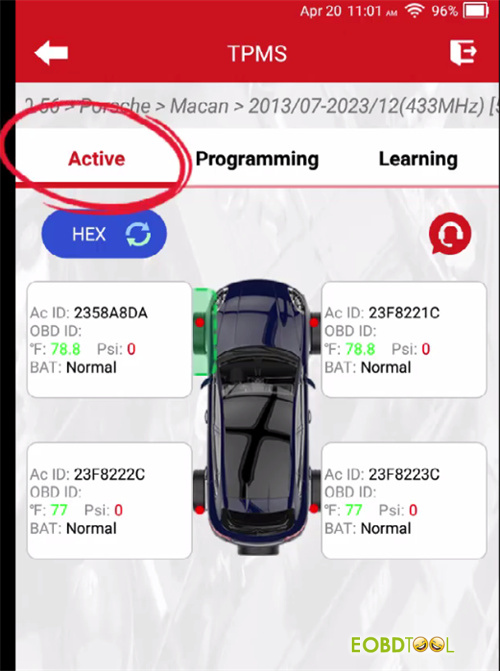

Choose [Active] on the tool to trigger the fresh FL sensor and confirm it’s broadcasting data.
Step 4: Execute OBD Relearn & Driving Sleep Cycle

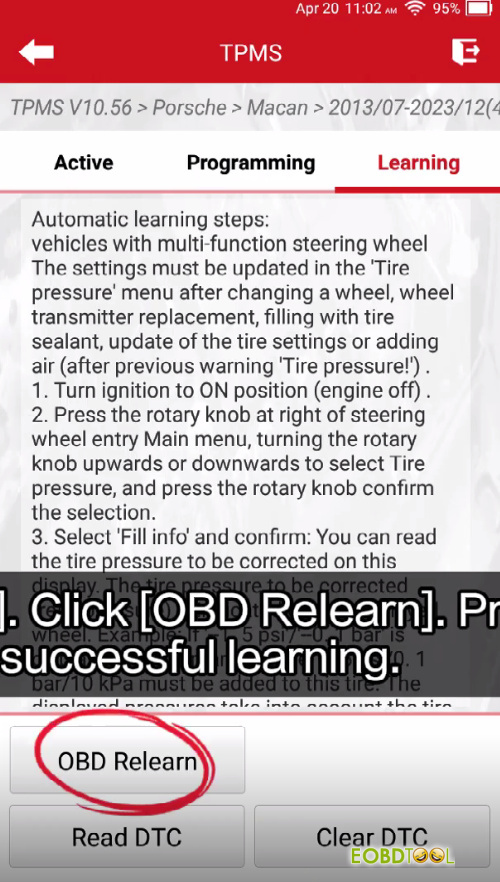

Navigate to [Learning], click [OBD Relearn], and complete the on-screen prompts.
The Porsche Learning Protocol: Lock the Macan and let the vehicle go into a deep sleep for 20 minutes.
Turn on the ignition, navigate to your central infotainment screen, and trigger the Tire Pressure Reset menu.

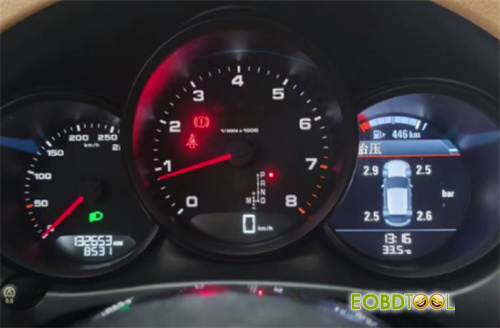

Take the vehicle for a road test at speeds above 25 km/h. Once the on-screen progress bar completes and live pressures populate, the dashboard warning light will shut off automatically.
