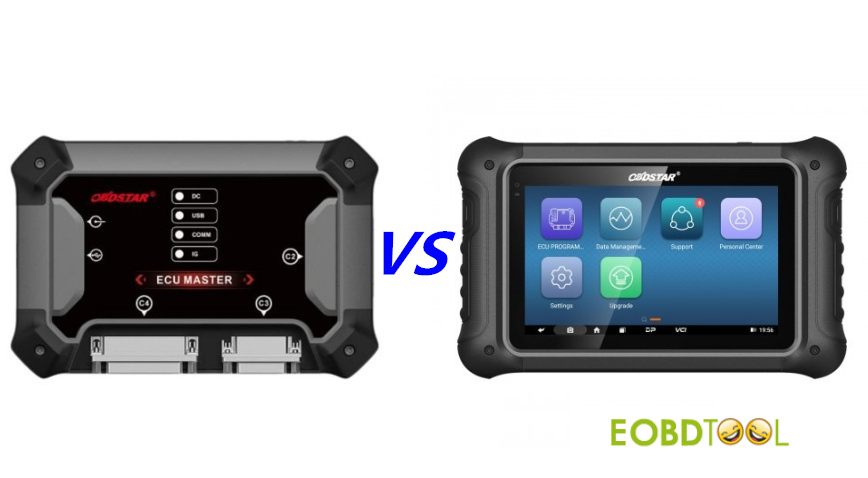

Choosing the right cloning and bench tool depends heavily on your specific workshop needs. Here is a detailed breakdown of the fundamental differences between OBDSTAR DC706 and new OBDSTAR ECU Master.
- Device Architecture & Operation
- OBDSTAR DC706: Functions as a completely standalone tablet, allowing you to perform jobs directly on the device without external hardware.
- OBDSTAR ECU Master: A PC-based interface that must be linked to a computer running Windows 10 or higher to operate.
- Available Software Packages
DC706: Comes with 3 standard configurations tailored for passenger vehicles: ECM, BCM, and TCM.
ECU Master: Offers a broader, modular approach with 4 distinct configurations:
- Config A: Car ECM/BCM/TCM + EV modules
- Config B: Motorcycle ECMs
- Config C: Heavy-Duty (HD) Diesel Truck & Tractor ECM/BCM/TCM
- Config D: Airbag, BMS, and SAS Reset functions
- Core Functional & Hardware Differences
- Built-in Hardware vs. External Adapters: ECU Master boasts a highly integrated design with native CAN FD protocol, P003+, and MP001capabilities built directly into the unit—meaning no extra adapters are needed. Conversely, DC706 users must purchase optional external accessories (like P003+, MP001, and CAN FD adapters) to achieve the same coverage.
- Motorcycle Diagnostics: To pave the way for highly competitive, dedicated motorcycle coverage in the future, OBDSTAR has separated motorcycle ECM programming into its own package (Config B) exclusively for the ECU Master.
- Commercial & Heavy-Duty Vehicles:OBDSTAR ECU Master serves as a powerful, cost-effective alternative to high-end heavy-duty tools like Auto VEI (priced over €13,000 with strong BCM functions) and The Genius (around €8,000 with extensive ECM/TCM support). It delivers full ECM, BCM, and TCM coverage for diesel trucks and tractors under Config C. On the other hand, DC706 does not support truck or tractor modules whatsoever.
- Airbag & Safety Module Resetting:While DC706 cannot be upgraded with airbag reset features (which requires the separate OBDSTAR P50 airbag reset tool), ECU Master accommodates airbag, BMS, and SAS resets via Config D without needing an external CAN FD adapter.
- Marine Applications: > If you work on boats and jet skis, OBDSTAR DC706 ECU Tool has the upper hand here, as it includes support for various marine ECMs. OBDSTAR ECU Master currently does not support the marine sector.
