OP-COM USB diagnostic interface for Opel and Vauxhall firmware has newly updated to V1.59. Here is the step-by-step instruction on how to install opcom 1.59 software.
Software version (SW): 08/2010
Firmware version (FW): V1.59
How to install OP-COM 1.59 software?
1) Install Op-com driver
Open My Computer
Open OP-COM (E:) CD software
Create a new folder “op-com” on Local Disk (C:)
Copy all files in OP-COM CD to the “op-com” folder
Send OP-COM Diagnostic software to Desktop (create shortcut)
Connect China clone OP-COM V1.59 interface with computer via USB port

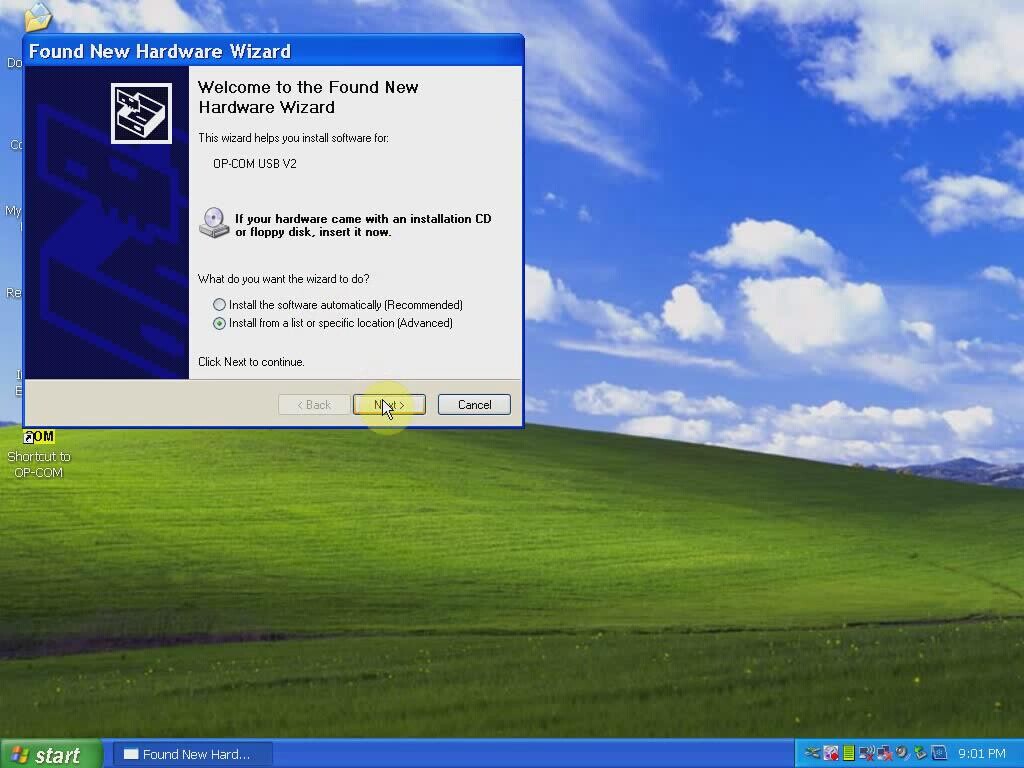

Wait the system to detect hardware wizard
Select “Install from a list or specific location (Advanced)”, click “Next”
Include and browse location to C:﹨op-com﹨Drivers, click OK
Click “Next”
Click “Next”

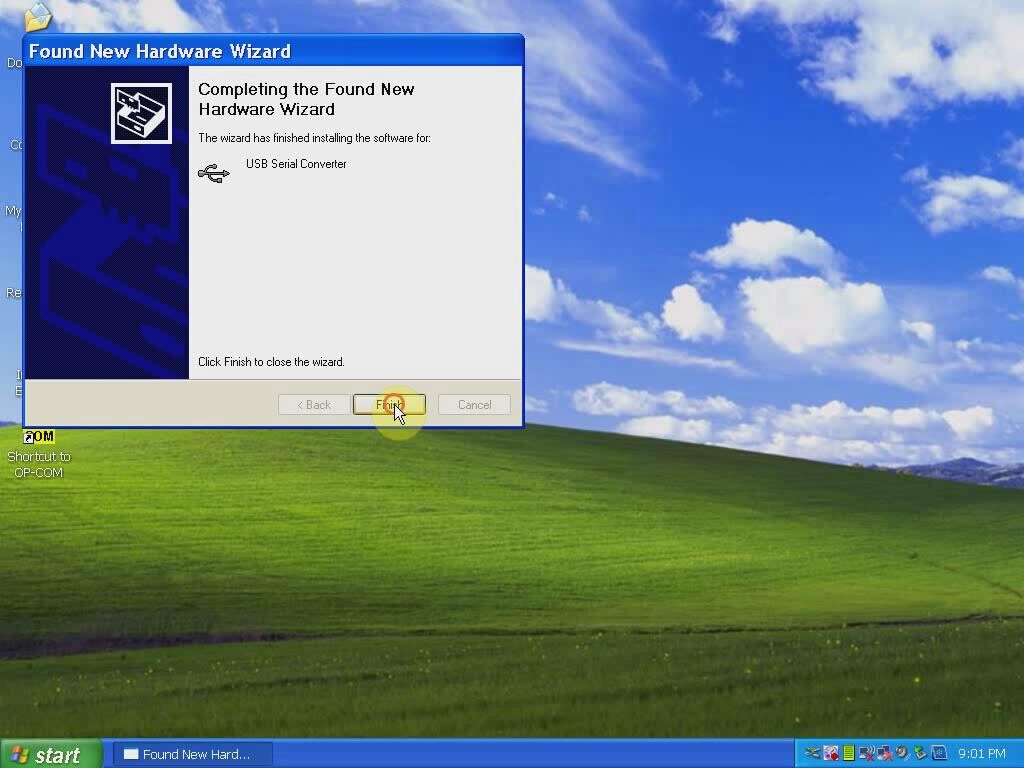

Click “Finish” when opcom driver is completely installed

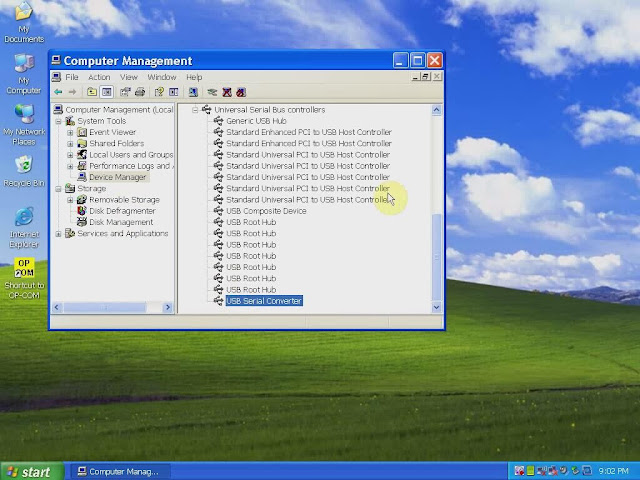

Open My Computer>>Manager>>Device Manager>>Universal Serial Bus controllers>>USB Serial Converter to make sure well communication is built
2) Run Op-com software and diagnose
Plug the op-com cable with vehicle via OBD diagnostic socket
Open “Shortcut to OP-COM” software on desktop
OPCOM CHINA-CLONE 08/2010
Click “Settings”

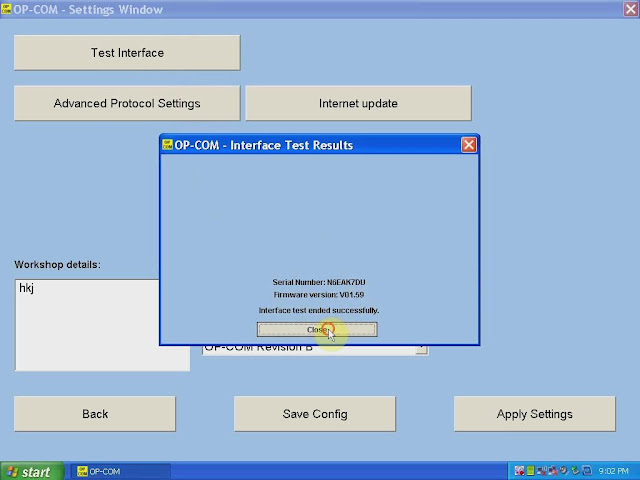

Click “Test Interface”, you will able to see the OPCOM serial number and firmware version V01.59
Click “Close”
Click “Save Config”
OP-COM Configuration saved! Press “OK”
Back to Opcom software main menu
Select “Diagnostic” function
Select “Automatic Vehicle Identification”

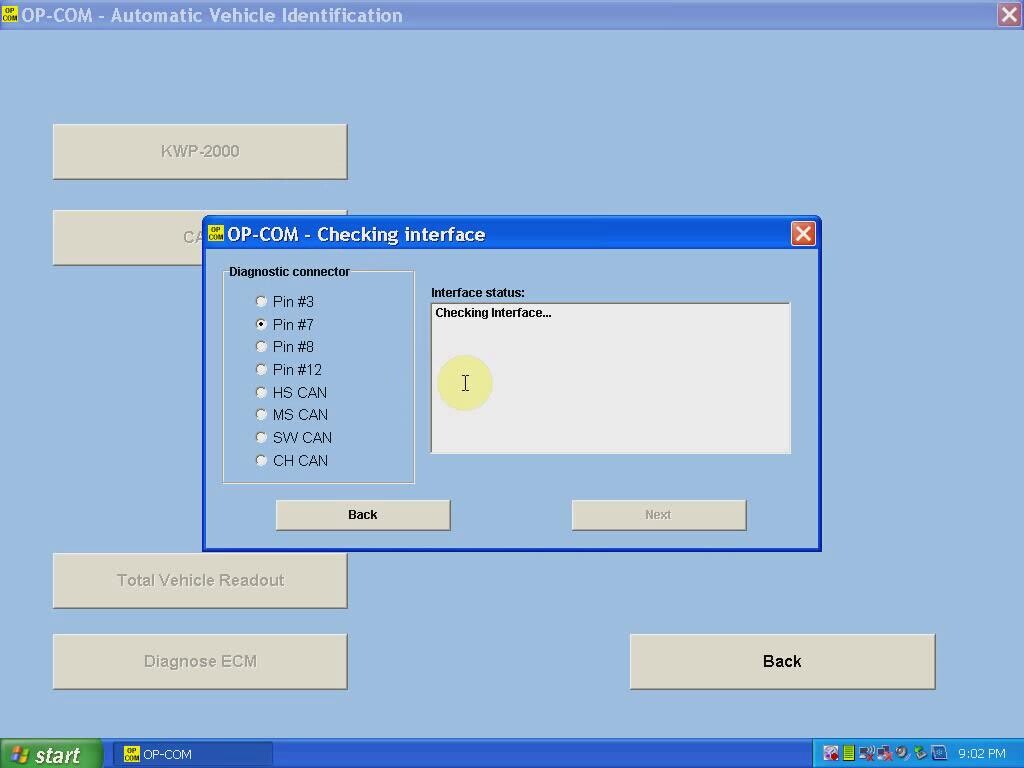

Select “KWP-2000” (K-line) or “CAN” and select diagnostic connector
The op-com 2010V software will display vehicle information, VIN, model, engine code etc
Click “Diagnose ECM” button
Select ECM type and diagnostic connector
Click “Fault Code”
Op-com will display all error codes stored in ECM
The click “Clear Fault Codes” to erase error codes
Perform other diagnostic functions or exit the software program
Unplug the op-com USB interface.
